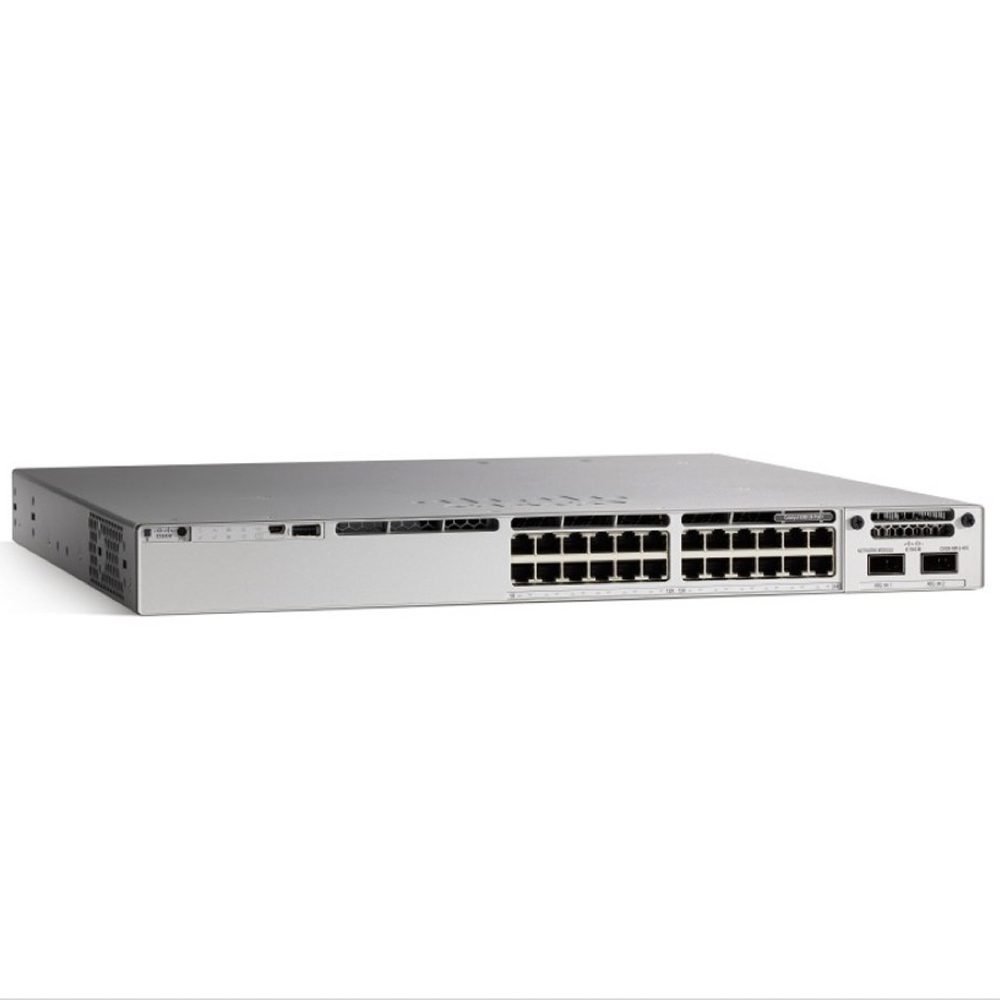

C9200-24P-E Technical Specifications
Cisco Switch Catalyst 9200
Product Line: Cisco Catalyst
Product Series: C9200
Downlinks: 24 full PoE+ ports (10/100/1000)
Uplink Configuration: Modular options available
Power Supply: Default primary AC PWR-C5-600WAC
Cooling: Redundant FRU fans
Software: Network Essentials
Chassis Dimensions: 1.73 x 17.5 x 13.8 in (4.4 x 44.5 x 35.0 cm)
Weight: 5.5 Kg
Virtual Networks: Supports up to 4
Stacking Bandwidth: 160 Gbps
MAC Addresses: 32,000 total
IPv4 Routes: 14,000 (10,000 direct, 4,000 indirect)
IPv4 Routing Entries: 4,000
IPv6 Routing Entries: 2,000
Multicast Routing Scale: 1,000
QoS Scale Entries: 1,000
ACL Scale Entries: 1,600
Packet Buffer: 6 MB for 24- or 48-port models
Flexible NetFlow: 16,000 flows on 24- and 48-port models
DRAM: 4 GB
Flash: 4 GB
VLAN IDs: 4096
Total SVIs: 1,000
Jumbo Frames: 9198 bytes
Wireless Bandwidth: Up to 48 Gbps
Switching Capacity: 128 Gbps
Forwarding Rate: 190.4 Mpps
Mean Time Between Failures: 422,310 hours
