C6807-XL-S2T-BUN Technical Specifications

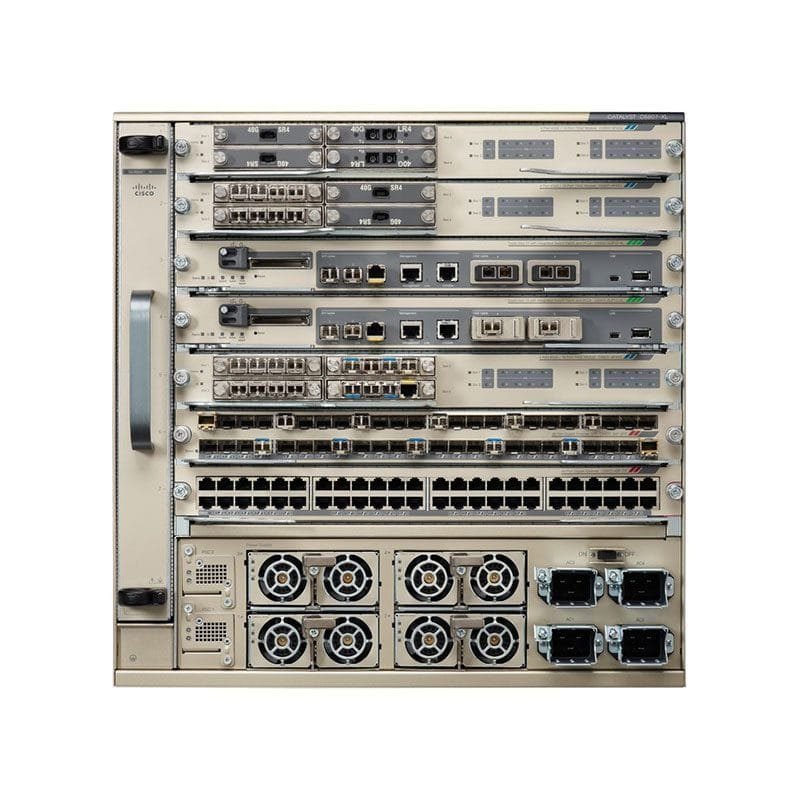

Cisco Catalyst 6800 Series Switch
General Information
Brand: Cisco
Product Line: Cisco Catalyst
Series: C6800
Enclosure: Rack-mountable 10U
Ports: 3 x SFP + 2 x X2
Performance Metrics: Per-slot switching capacity of 880 Gbps, IPv4 routing at 720 Mpps, and IPv6 routing reaching 390 Mpps.
Standards Compliance: IEEE 802.1x
Memory: 2 GB RAM (installed), expandable to 4 GB
Flash Storage: 1 GB
Management Interface: 1 x 1000Base-T – RJ-45
Expansion Capabilities: 7 total slots, with 6 available for expansion
Power Supply: Hot-plug internal power supply
Installed Power Units: 2 (with a maximum of 4)
Redundancy: Yes, with an N+1 scheme
Power Output: 3000 Watt
Voltage Requirements: AC 120/230 V (50/60 Hz)
