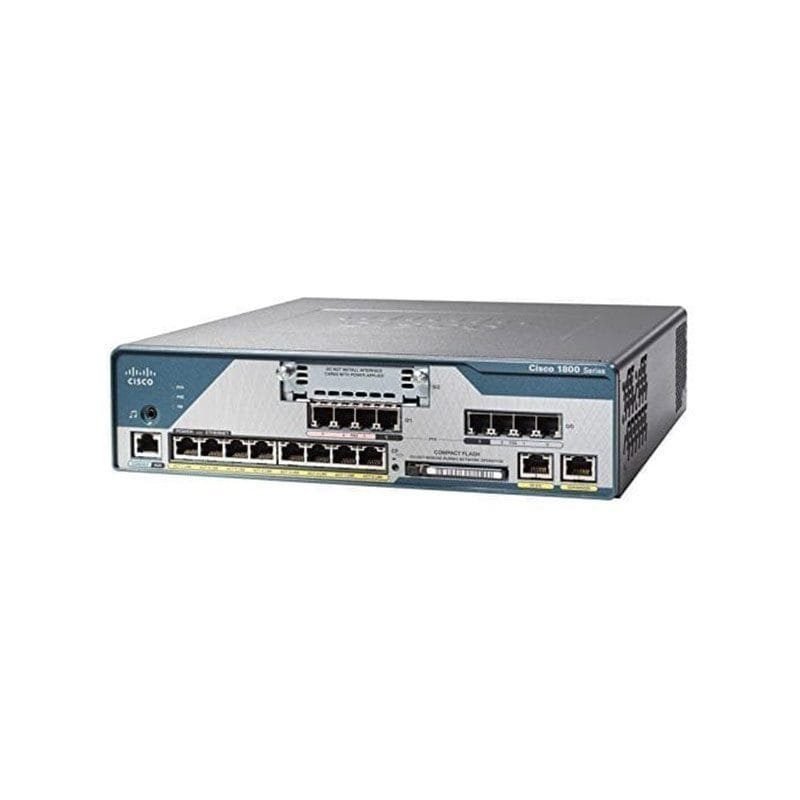

C1861W-UC-4FXO-K9-RF Cisco 1861 Integrated Services Router

C1861W-UC-4FXO-K9-RF Technical Specifications

Cisco 1861 Integrated Services Router

Integrated Services Router
Series: Cisco 1800
Model: C1861W
Product Code: C1861W-UC-4FXO-K9 – WLAN, 8-user CME, CUE, Ph. Lic, 4FXS, 4FXO, 8xPOE, HWIC slot (not a stocked item)
Licensing: 8-user Cisco Unified Communications Manager Express (CME)
Memory: DRAM (256 MB for Cisco IOS Software); 512 MB for Voice Messaging
Flash Memory: Cisco IOS Software – 128 MB; Voice Messaging – 1 GB; Compact Flash onboard
Ethernet Ports: 1 x 10/100 Fast Ethernet; 8 x 10/100 Mbps LAN; 1 x 10/100 Ethernet expansion port
WAN Slot: 1 x HWIC slot
WLAN Hardware: 802.11b/g with automatic rate selection; 1 antenna diversity; indoor range of 1 Mbps at 320 ft (97.54m); WECA interoperability; default antenna gain of 2.2 dBi
FXS Ports: 4 built-in FXS ports
PSTN Interfaces: 4 built-in FXO ports
Console Port: 1, supporting up to 115.2 kbps
Voicemail Ports: 6 ports for voicemail and Automated Attendant
PoE Ports: 8 built-in 10/100 PoE ports
Dimensions: 66 x 266 x 280 mm (H x W x D)
Rack Height: 1.5 rack unit (RU)
* Includes a single 3.5-mm audio port or wave file stored in flash memory.
