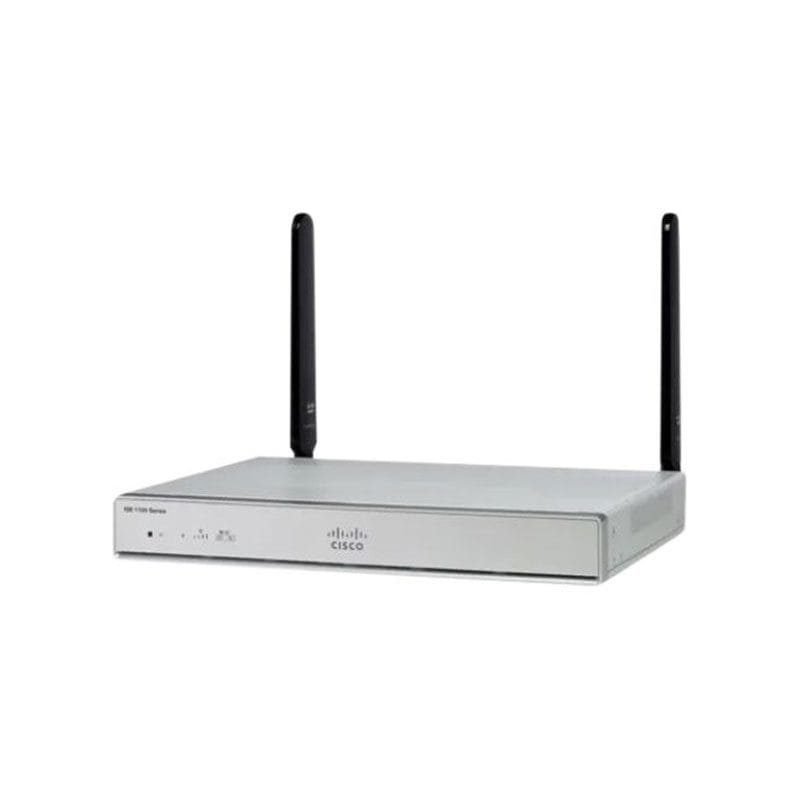

C1118-8P Cisco 1100 Series Integrated Services Router – 8 Ports

Description

C1118-8P Technical Specifications

Cisco 1100 Series Integrated Services Router

Model: C1118-8P
Ports: 8 (Dual GE WAN Ethernet)
ADSL2/VDSL2+: 1
LTE Advanced (CAT6): 1 G.SHDSL
Integrated Services Router
Series: Cisco 1100
PoE Ports: 4, PoE+: 2
Integrated USB 3.0 AUX/console: 1
Pluggable: Yes
Memory (default and maximum)
DRAM: 4 GB, Flash: 4 GB
Console
· Micro USB console (USB 3.0)
· Mini-USB port (reserved)
· Micro-USB port for remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0)
Standard safety certifications
· UL 60950-1, EN 60950-1
· CAN/CSA C22.2 No. 60950-1
· CB to IEC 60950-1, 2nd edition with all group differences and national deviations
EMC emissions
· EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, EN61000-6-1
EMC immunity
· EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), EN300-386
Radio immunity
· EN301 489-1, EN 301 489-7, EN301 489-24
Cellular radio
· EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, EN 301 908-13
Environmental operating range
· Nonoperating temperature: -4° to 149°F (-0° to 65°C)
· Nonoperating humidity: 5% to 95% relative humidity (noncondensing)
· Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m)
· Operating temperature: 32° to 104°F (0° to 40°C) with C1101 supporting up to 113°F (0° to 45°C)
· Operating humidity: 10% to 85% relative humidity (noncondensing)
· Operating altitude: 0 to 10,000 ft (0 to 3000 m).
