C1117-4PWA Technical Specifications

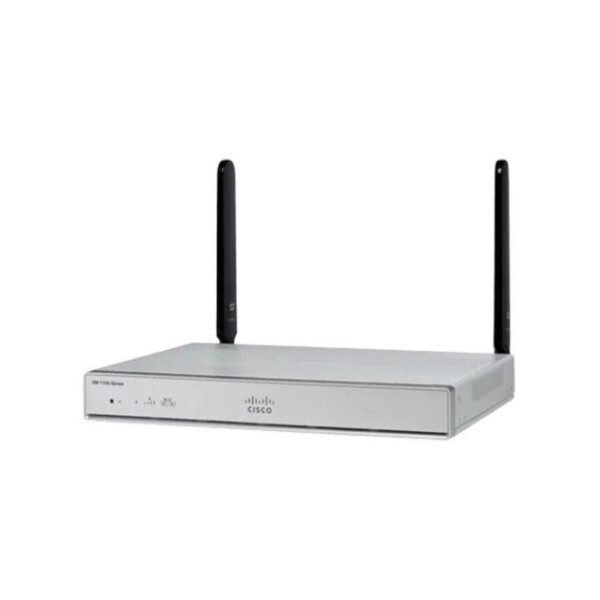

Cisco 1100 Series Integrated Services Router
Dimensions: Height x Width x Depth = 1.75 x 12.7 x 9.03 inches (42 x 323 x 230mm) including rubber feet.
Weight (with AC power supply, excluding modules): 5.5 lbs (2.5 kg) maximum.
AC Input Power
Input voltage: Universal 100 to 240 VAC.
Frequency: 50-60 Hz.
Input current: PoE disabled: 0.82A maximum; PoE enabled: 1.55A maximum.
Surge current: 90 A peak, under 8 Arms per half cycle.
Ports
Micro USB Port.
One RJ-45 console port.
USB Port
USB 3.0 Type A host port supporting USB flash memory.
Console Port
One USB 5-pin micro Type B for console management: 10/100/1000 Gigabit Ethernet.
Two GE ports configured among RJ45 and SFP: One combo port (10/100/1000 RJ-45 or SFP Ethernet) labeled GE0/0/0, and one dedicated 10/100/1000 RJ-45 port labeled GE0/0/1.
Wireless VLANs: Supports up to 32 encrypted and non-encrypted VLANs.
Wireless Specifications
2×2 .11ac Wave 2.
Default and maximum DRAM: 4GB.
Default and maximum flash: 4GB.
Inline PoE
Four ports for -8P PIDs, two ports for -4P PIDs; compliant with 802.3af PoE or 802.3at PoE+.
Acoustic for Cisco 1100 Series ISRs: Fanless design, hence not applicable.
