Description
C1113-8PLTEEAWB Technical Specifications

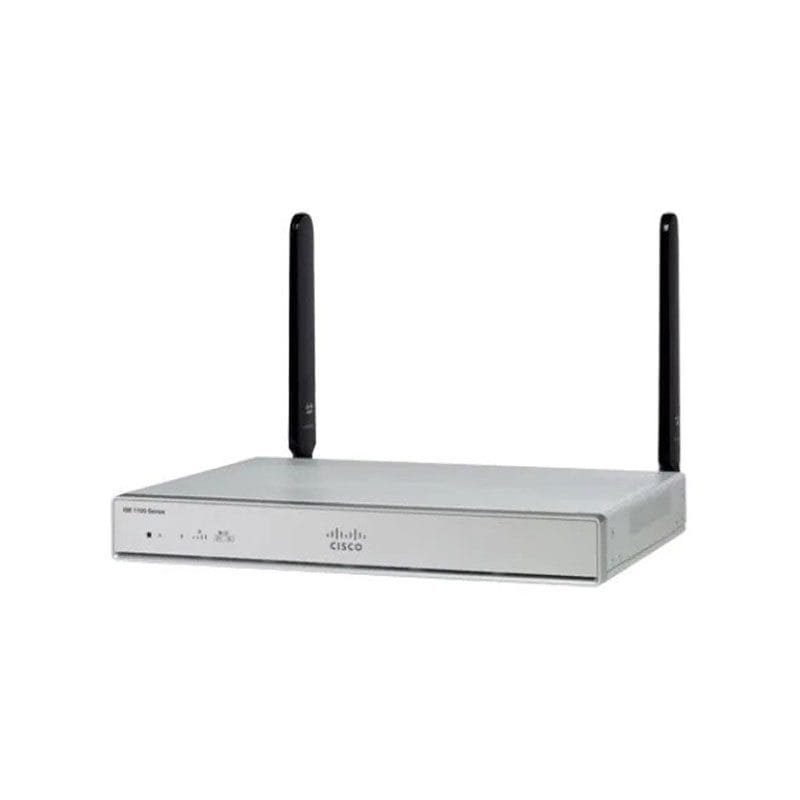

Cisco 1100 Series Integrated Services Router
The C1113-8PLTEEAWB model features a GE/SFP combo of 1, along with 1 G.FAST ADSL2/VDSL2+ (Annex A) and LTE Advanced (CAT6) for EMEAR and North America. It supports 802.11ac with 2X2 MIMO, providing 8 GE ports, 4 PoE ports, and 2 PoE+ ports. The router integrates a USB 3.0 AUX/console port for enhanced connectivity.
Memory (default and maximum)
DRAM: 4 GB, Flash: 4 GB.
Console
Includes a Micro USB console and a reserved Mini-USB port for remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM).
802.11ac Features
Supports 2×2 SU-MIMO/MU-MIMO with two spatial streams, achieving PHY data rates up to 866.7 Mbps on 80 MHz (5 GHz). It also features packet aggregation and DFS support.
Power Specifications
Universal AC input voltage: 100 to 240 VAC, with a maximum output power of 66W. Optional PoE configurations are available for various models.
Physical Dimensions
Dimensions for C111X Models are 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm). Weight ranges from 1.94 lb to 4.89 lb depending on configurations. Operating temperature ranges from 32° to 104°F (0° to 40°C).
