Description
C1112-8PLTEEA Technical Specifications

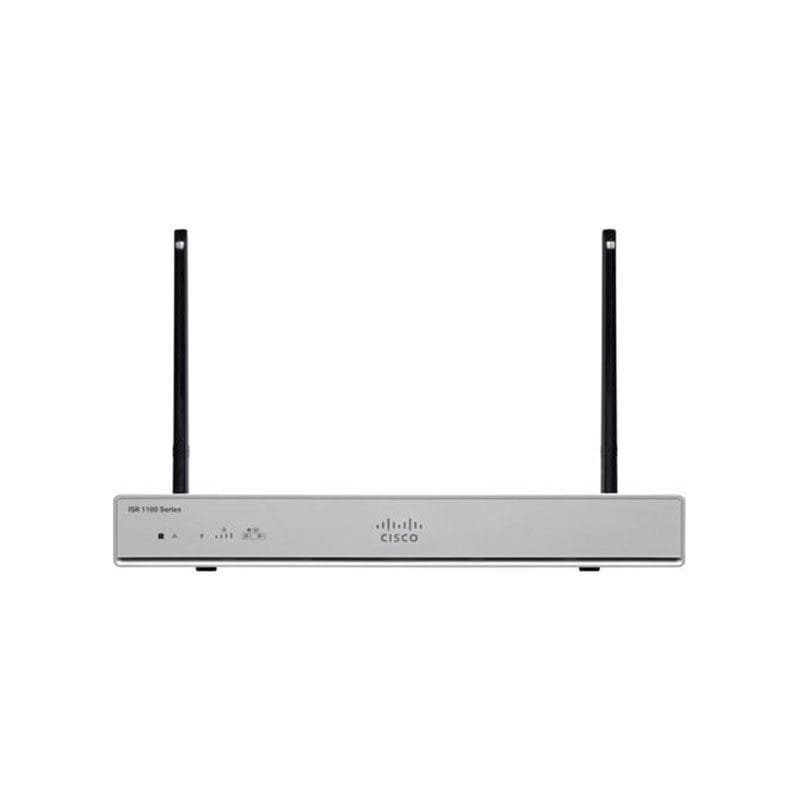

Cisco 1100 Series Integrated Services Router
The C1112-8PLTEEA model includes a GE/SFP combo with 1 port, supporting ADSL2/VDSL2+ and 1 G.FAST (Annex B). It features LTE Advanced (CAT6) connectivity with 1 port for EMEAR and North America. As part of the Cisco 1100 Series, this integrated services router comes with 8 GE ports, 4 PoE ports, and 2 PoE+ ports. It also has integrated USB 3.0 AUX/console capabilities.
Dimensions (H x W x D)
1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm), including rubber feet on LTE models.
Memory specifications include 4 GB DRAM and 4 GB Flash. The console interface features a Micro USB console (USB 3.0) with a reserved Mini-USB port for remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM).
Safety Certifications
This router meets various safety standards including UL 60950-1, EN 60950-1, and CAN/CSA C22.2 No. 60950-1.
EMC Compliance
It adheres to numerous EMC emissions and immunity standards such as EN55022/CISPR22, EN55024/CISPR24, and EN301 908-1.
Operating Conditions
The device operates within a temperature range of 32° to 104°F (0° to 40°C) and a humidity range of 10% to 85% (noncondensing), with a nonoperating temperature range of -4° to 149°F (-0° to 65°C).
