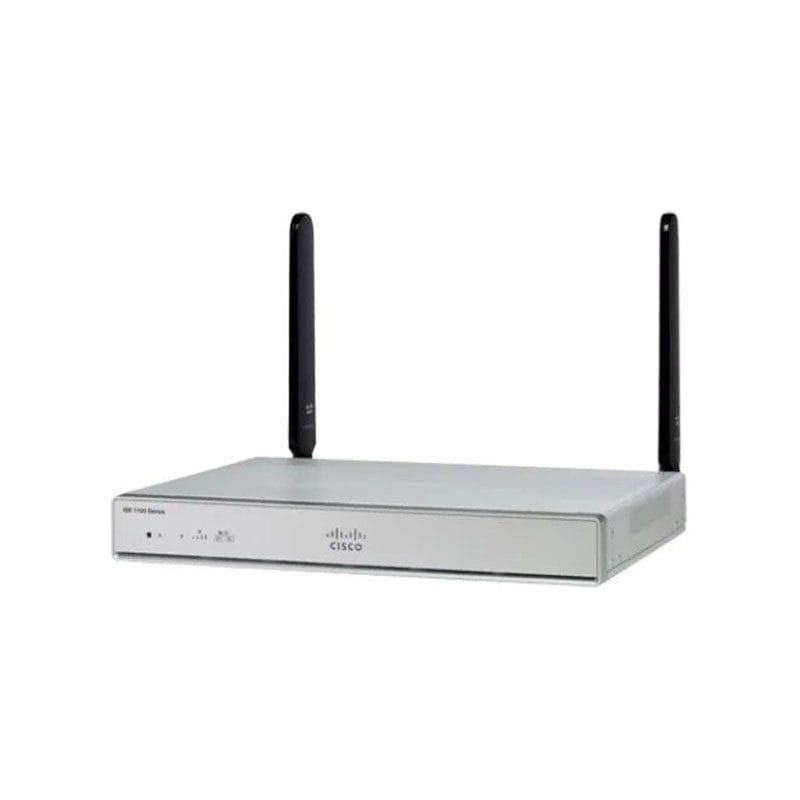

C1111-4PWX Cisco 1100 Series ISR with 4 Ports

C1111-4PWX Technical Specifications

Cisco 1100 Series Integrated Services Router

The C1111-4PWX model offers various connectivity options including 1 GE port and 1 GE/SFP combo port. Although ADSL2/VDSL2+ capabilities are not applicable, it supports LTE Advanced (CAT6) and features 802.11ac with a 2X2 MIMO configuration. The router includes 4 GE ports, 2 PoE ports, and 1 PoE+ port. For connectivity, it has an integrated USB 3.0 AUX/console port.
Memory (default and maximum)
DRAM: 4 GB, Flash: 4 GB.
Console
· Micro USB console (USB 3.0).
Mini-USB port (reserved)
· Micro-USB port available for remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0).
Standard safety certifications
· UL 60950-1, EN 60950-1, CAN/CSA C22.2 No. 60950-1, and CB to IEC 60950-1, 2nd edition with all group differences.
EMC emissions
· Compliance with EN55022/CISPR22, CFR 47 Part 15, and others.
Environmental operating range
· Operating temperature: 32° to 104°F (0° to 40°C) and nonoperating temperature: -4° to 149°F (-0° to 65°C), with a humidity range of 5% to 95% relative humidity (noncondensing).
