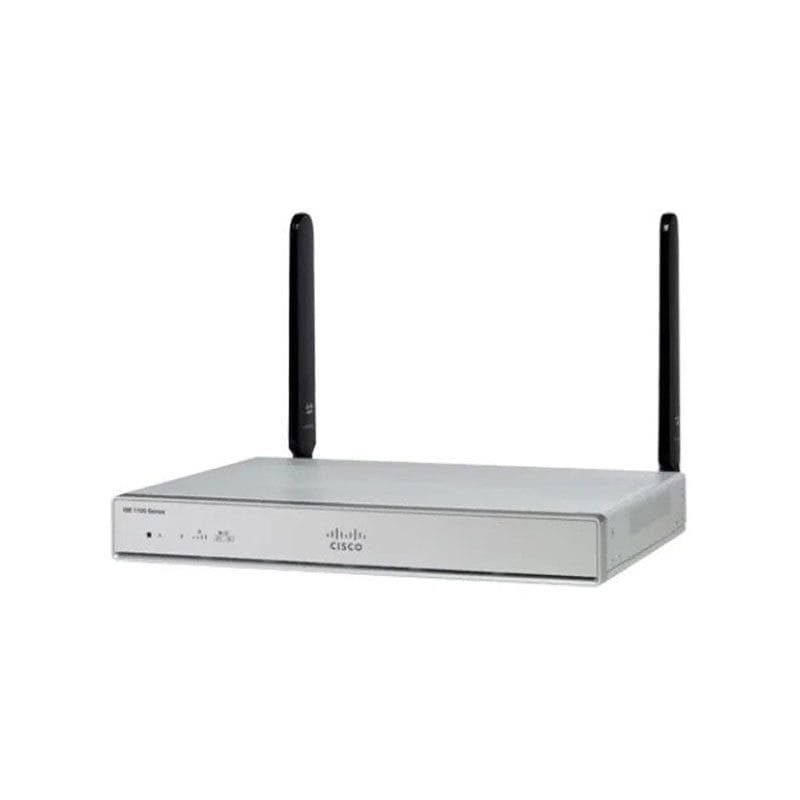

C1111-4PWR Cisco 1100 Series ISR – 4 Ports with WiFi

C1111-4PWR Technical Specifications

Cisco 1100 Series Integrated Services Router

Description
The ISR 1100 model provides a 4 Ports Dual GE WAN Router with integrated 802.11ac -R WiFi capabilities.
Physical Properties
Dimensions (H x W x D): Non-LTE variants measure 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm), including rubber feet. The weight with AC power supply (excluding modules) is a maximum of 5.5 lbs. (2.5 kg).
AC Input Power
Input voltage: Universal 100 to 240 VAC; Frequency: 50-60 Hz; Input current: Maximum of 0.82A when PoE is disabled, and 1.55A when PoE is enabled. Surge current peaks at 90 A and is less than 8 Arms per half cycle.
Ports
Includes a Micro USB port and one RJ-45 console port. The USB 3.0 Type A host port supports USB flash memory devices. The console management connectivity utilizes a USB 5-pin micro Type B port. The device features two Gigabit Ethernet ports with one combo port supporting either RJ-45 or SFP Ethernet (labeled GE0/0/0) and one dedicated RJ-45 port (labeled GE0/0/1).
Wireless VLANs
Supports 32 VLANs, both encrypted and non-encrypted, with wireless specifications of 2×2 .11ac Wave 2 technology. The device has a default and maximum DRAM of 4GB and the same for flash memory.
Inline PoE
Four ports support -8P PIDs, while two ports are for -4P PIDs, compliant with 802.3af PoE or 802.3at PoE+. Acoustic information for the Cisco 1100 Series ISRs indicates a fanless design, making it silent in operation.
