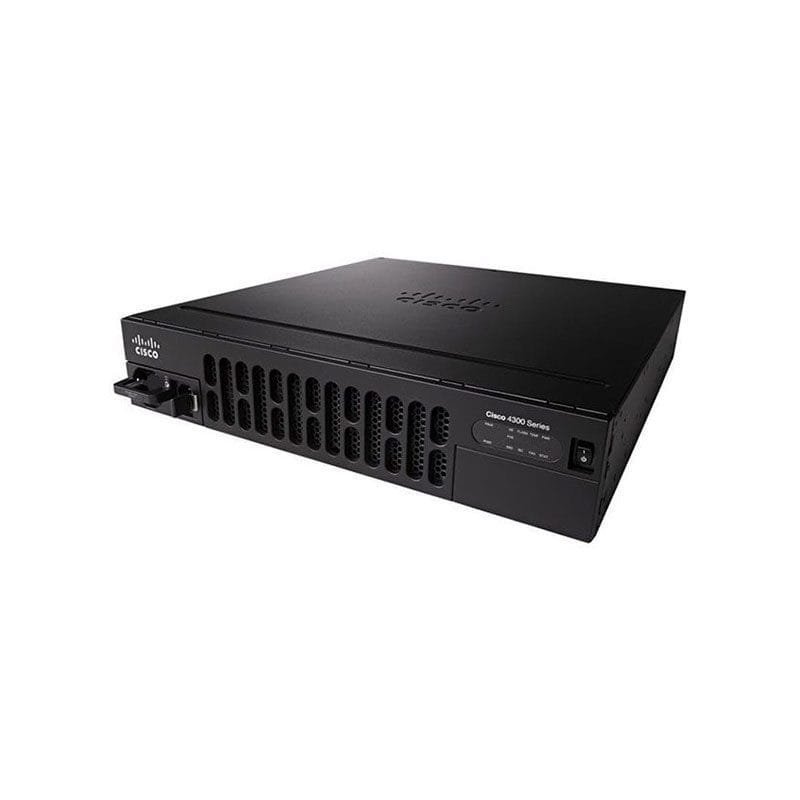

C1-CISCO4351/K9 Cisco ONE ISR 4351 Router Series

C1-CISCO4351/K9 Technical Specifications

Cisco ONE ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G DRAM.IPB)

Product Number: C1-CISCO4351/K9
Product Line: Integrated Services Router
Product Description: Cisco ONE ISR 4351 (3GE.3NIM.2SM.4G FLASH.4G DRAM.IPB)
Product Series: CISCO 4300
Aggregate Throughput: 200 Mbps to 400 Mbps
Total onboard WAN or LAN 10/100/1000 ports: 3
RJ-45-based ports: 3
SFP-based ports: 3
Enhanced service-module slots: 2
Doublewide service-module slots: 1 (assuming no singlewide SM-X modules are installed)
NIM slots: 3
OIR (all I/O modules): Yes
Onboard ISC slot: 1
Default memory DDR3 ECC DRAM: 4 GB
Maximum memory DDR3 ECC DRAM: 16 GB
Default flash memory: 4 GB
Maximum flash memory: 16 GB
External USB 2.0 slots (type A): 2
USB console port – type B mini (up to 115.2 kbps): 1
Serial console port – RJ45 (up to 115.2 kbps): 1
Serial auxiliary port – RJ45: 1
Power-supply options
Internal: AC, DC, and PoE
AC input voltage: 100 to 240 VAC autoranging
Typical power (no modules) (watts): 48
Maximum power with AC power supply (watts): 430
Maximum power with PoE power supply (platform only) (watts): 990
Maximum endpoint PoE power available from PoE power supply (watts): 500.
