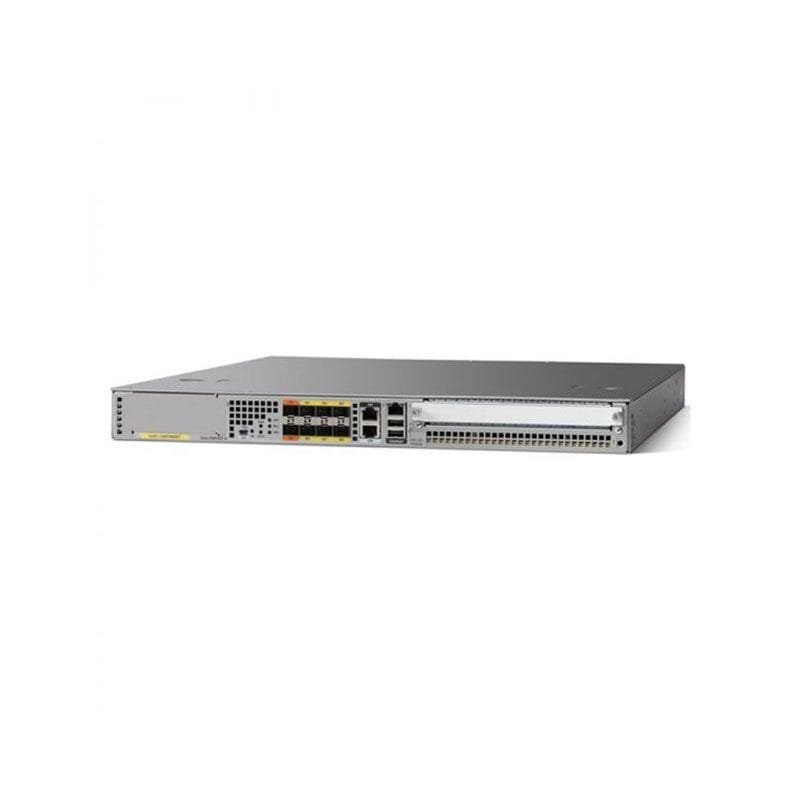

C1-ASR1001-X/K9 Cisco ONE – ASR1001-X Router with 6 SFP and 2 SFP+ Ports

Description

C1-ASR1001-X/K9 Technical Specifications

Cisco ONE – ASR1001-X Configuration

Physical specifications can be found in the relevant hardware installation guide.
– Height: 1.71 in. (43.43 mm)
– Width: 17.3 in. (439.42 mm)
– Depth: 18.17 in. (461.5 mm)
– Weight: 25 lb (11.35 kg) when fully loaded.
The Cisco ASR 1001-X Router integrates the route processor, ESP, and SIP within its chassis.
Default memory includes 8-GB DRAM shared across the route processor, ESP, and SIP.
The router supports integrated SIPs and Ethernet line cards, with one single-height SPA slot available.
It features 6 built-in Gigabit Ethernet SFP ports and 2 10 Gigabit SFP+ ports, which cannot be downgraded to 1-GB speeds.
ESP support includes the Cisco ONE ASR with a default bandwidth of 2.5 Gbps, upgradable via a software license to 5, 10, or 20 Gbps.
Embedded hardware-based encryption supports up to 8 Gbps crypto throughput.
This model is rack-mountable (19-inch) but not wall-mountable, and it offers dual power supplies (AC or DC).
Power input is globally compatible, with maximum consumption of 250W (AC) and 242W (DC).
Operating conditions range from 32 to 104°F (0 to 40°C) with a humidity level of 10 to 85%, and it supports altitudes from -500 to 10,000 feet.
