Description
ASR-9010-DC-V2 Technical Specifications

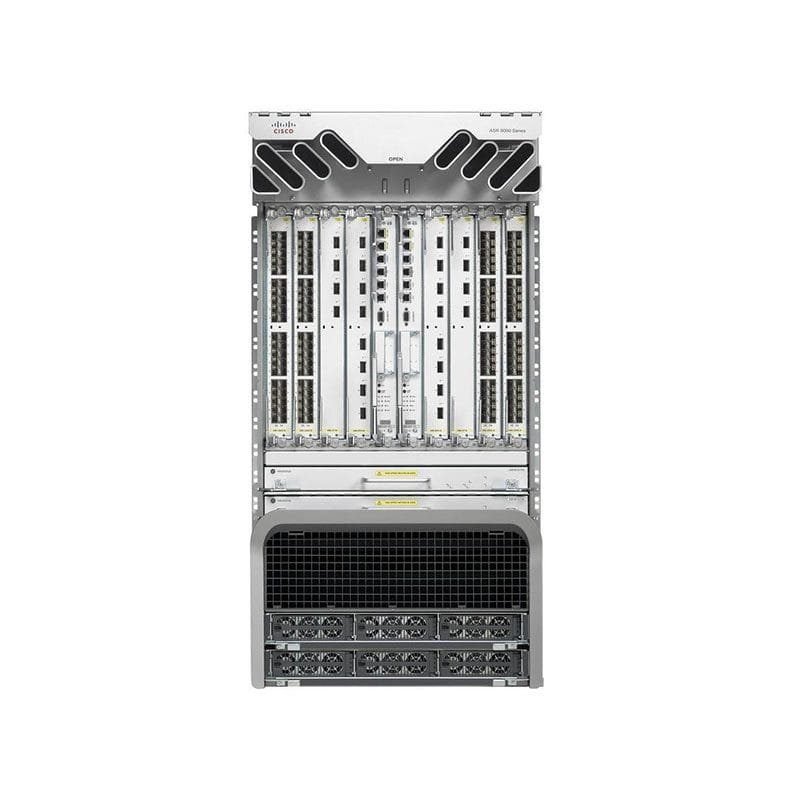

Cisco ASR 9010 System ASR-9010-DC-V2 DC Chassis with PEM Version 2
Product Line: Cisco ASR
Product Series: Cisco ASR 9000
Product Series: ASR-9010
Product Type: Router Chassis
Physical Specifications
Height: 36.75 in. (933.45 mm) – 21 RU
Width: 17.38 in. (441.45 mm)
Depth:
With doors: 29.03 in. (737.4 mm)
Without doors: 28.24 in. (717.3 mm)
Weight:
155.6 lb (70.73 kg) for chassis with PEM
231.6 lb (105.27 kg) when fully loaded (excluding line cards and power modules, including RSP, two v2 fan trays, and PEMs)
Slot Orientation
Vertical
Cisco ASR 9000 Series RSP
Includes dual redundant RSPs with integrated fabric in two slots
Cisco ASR 9000 Series Line Cards
Supports eight line-card slots
Commons Components
Two RSPs, two fan trays, two PEMs (either DC or AC), and one fan filter
Reliability and Availability
Features such as fabric, fan, feed, power supply, RSP, and software redundancy
Rack Mounting
Designed for 19-in. racks with 21- and 23-in. adapters available
Note: A minimum 17.75-in. opening between posts is required for proper operation
Cabinet Mounting
Yes, but doors are not recommended in enclosed cabinets
Wall Mounting
No
Airflow
Front-to-back airflow design.
