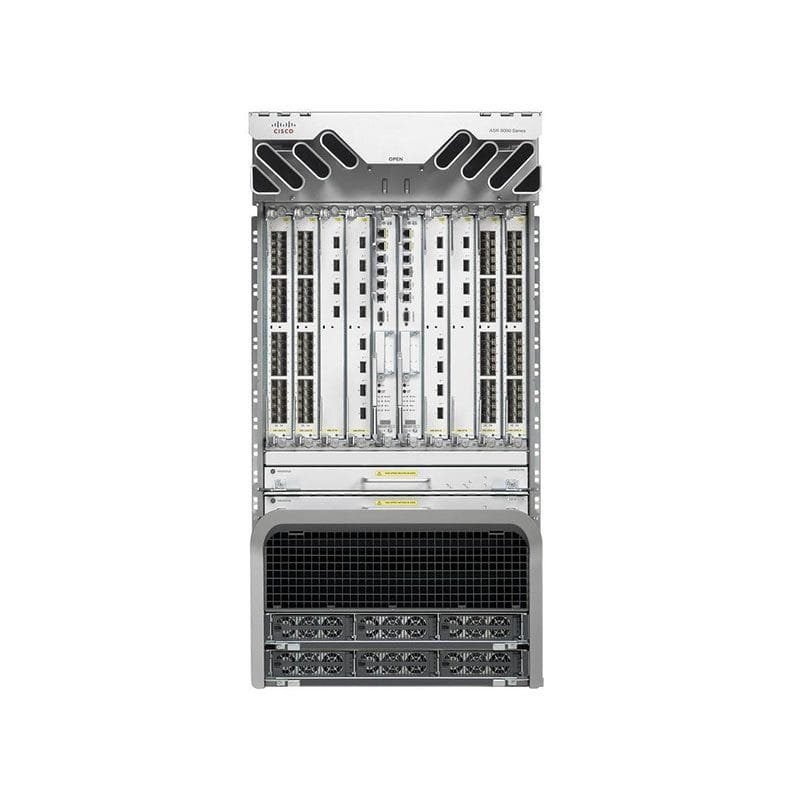

ASR-9010-AC-V2 Cisco Router – ASR 9010 Series Enhanced Performance

Description

ASR-9010-AC-V2 Technical Specifications

Cisco ASR 9010 System ASR-9010-AC-V2 ASR 9010 AC Chassis with PEM Version 2

Slot Provided
Total Qty: 2 (Free Qty: 2) – Processor board, Total Qty: 8 (Free Qty: 8) – Additional slots available.
Networking
Connectivity Technology: Wired, Form Factor: Desktop and Rack-mountable, Modular: Yes, Type: Modular expansion base.
Miscellaneous
Compliant Standards: ACA TS001, AS/NZS 60950-1, BSMI, CISPR 22 Class A, EN 60825, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 61000-6-1, EN300-386, EN50082-1, EN55022, EN55024, ETSI, FCC CFR47 Part 15, FDA, ICES-003 Class A, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, VCCI Class A ITE.
Environmental Parameters
Operating Humidity Range: 5 – 95%, Max Operating Temperature: 104 °F, Min Operating Temperature: 41 °F.
Header
Brand: Cisco, Compatibility: PC, Manufacturer: CISCO DS HARDWARE DIRECT, Product Series: Cisco ASR 9000, Packaged Quantity: 1, Product Line: Cisco ASR, Product Type: Router Chassis.
Modem
Type: None.
Power Device
Installed Qty: 0, Max Supported Qty: 6, Power Redundancy: Yes, Type: Internal power supply.
Dimensions & Weight
Depth: 28.6 in, Height: 36.8 in, Weight: 191.36 lbs, Width: 17.5 in.
Chassis
Installed Devices Modules Qty: 0, Supported Devices Modules Qty: 10, Expansion Slots: Type: Expansion slot.
