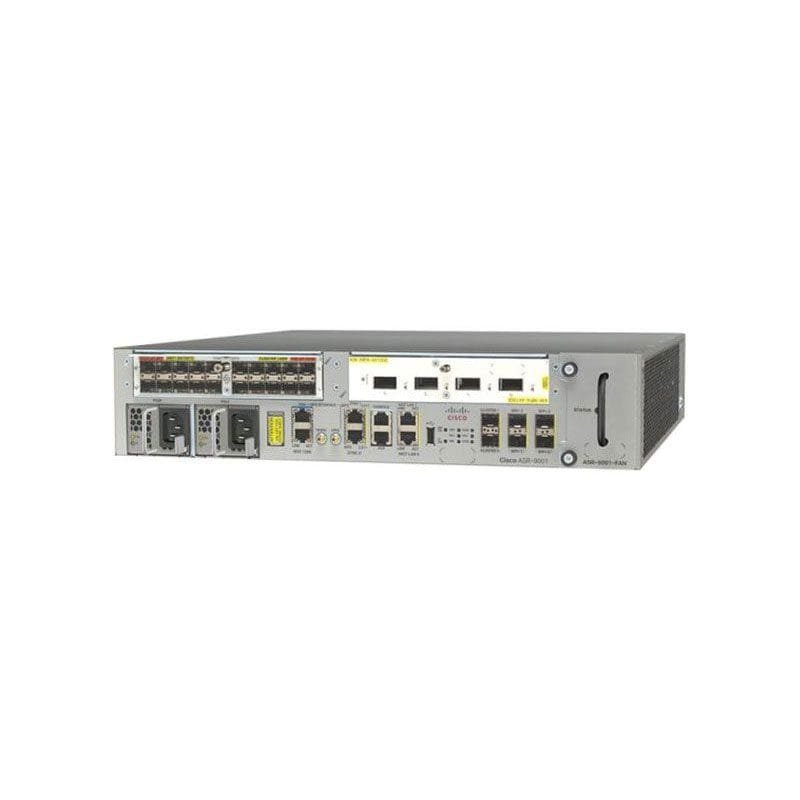

ASR-9001 Cisco ASR 9001 Router Chassis

ASR-9001
ASR-9001

  • Fast Shipping

    Receive products in amazing time

  • Easy Returns

    Return policy that lets you shop at ease

  • Always Authentic

    We only sell 100% authentic products

  • Secure Shopping

    Your data is always protected

$55,995.00

Highlights

ASR-9001 Overview

The Cisco ASR 9001 is a compact, high-performance provider-edge router, featuring a nonblocking, full-duplex fabric capacity of 120 Gbps in a 2RU form factor. This model includes an integrated route switch processor (RSP) and two modular bays that accommodate various modular port adapters, including 1 GE, 10 GE, and 40 GE. The base chassis, ASR-9001, includes four 10 GE SFP+ ports, a GPS input for Stratum 1 clocking, BITS ports, and management ports.

SKU: ASR-9001 Category: Tags: , , , , Brand:

Description

ASR-9001 Technical Specifications

Cisco ASR 9001 Router Chassis

The Cisco ASR 9001 is designed as a robust router chassis within the ASR 9000 series. Integrated interfaces include: 4 x 10 GE SFP+ ports. Modular port adapters: Compatible with 20 x 1 GE, 2 x 10 GE, 4 x 10 GE, and 1 x 40 GE configurations. Redundancy: Features power supply redundancy. Power supply part numbers: A9K-750W-AC and A9K-750W-DC. Physical specifications: Height: 3.472 inches (88.2 mm), Width: 17.42 inches (442 mm), Depth: 18.5 inches (470 mm), Chassis weight: 30.2032 lbs (13.7 kg), Weight with two MPAs: 36.37623 lbs (16.5 kg). Power inputs: Supports worldwide AC (90-265V; 50-60 Hz) and DC (-40V to -72V). Power consumption: Typical is 425 watts, maximum is 525 watts. Environmental conditions: Operating temperature range is 32 to 104°F (0 to 40°C), storage temperature range is -40 to 167°F (-40 to 75°C), and relative humidity is 10 to 90%, noncondensing.

Additional information

Weight6.9 lbs
Dimensions38.24 × 39.24 × 7.08 in
