ACX5448-D-AC-AFO Technical Specifications
Juniper Networks ACX Series Universal Metro Router
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks ACX Series Universal Metro Router

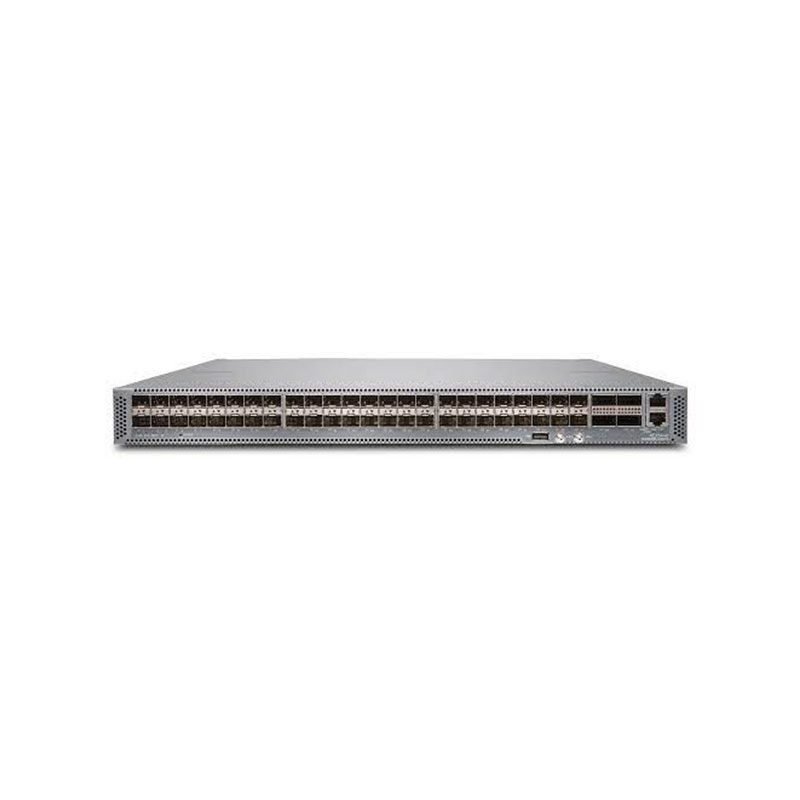

Model: ACX5448-D-AC-AFO
Packaged Quantity: 1
Chassis
Airflow Direction: Front to back airflow
Performance
Throughput: 800 Gbps
Networking
Type: Router
Form Factor: Rack-mountable
Connectivity Technology: Wired
Routing Protocol: BGP, OSPF, IGMP, MPLS, IS-IS, ECMP, TWAMP
Network / Transport Protocol: RSVP, IPv4, IPv6
Remote Management Protocol: NETCONF, OAM, CLI, YANG, SNMP 1, SNMP 2, SNMP 3
Features: Fast Reroute (FRR), Class of Service (CoS), Bidirectional Forwarding Detection (BFD), redundant fans, Layer 3 VPN support, BGP-LU, LDP, HQoS, IGMP snooping, VPLS, ERPS, CFM, LLDP support, EVPN, PIM, DSCP support, BPDU, ERPS v2, Layer 2 VPN support, VSTP, LACP, RSTP support
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.1Q, IEEE 802.1ad, ITU-T Y.1731
Interface Provided
Interfaces: 2 x CFP2, LAN: 36 x SFP/SFP+, 2 x QSFP28
Power Device
Type: Internal power supply
Power Redundancy: Yes
Nominal Voltage: AC 100/230 V
Frequency Required: 50/60 Hz
Power Consumption Operational: 525 watts
Miscellaneous
Color Category: Gray
Height (Rack Units): 1
Compliant Standards: NCC C6357, EN 60825-1, FCC Part 15 A, CISPR 24, AS/NZS CISPR22 Class A, ICES-003 issue 4 Class B, ETSI EN 300 019-2-1, ETSI EN 300 019-2-2, BSMI CNS 13438, EN 60950-1, UL 60950-1, ICES-003 issue 4, EN 55032:2012 Class A, EN 55032:2012 Class B, CAN/CSA-C22.2 No. 60950-1, EN 61000-4-11, CISPR 32, SR-3580 NEBS Level 3, AS/NZS CISPR 22 Class B, EN 300 386 V1.6.1, GR-1089-CORE, VCCI Class A, IEC 60950-1 (CB Certificate), EN55024, ETSI EN 300 019-2-3, GR-63-CORE, ETS 300 753, KN22 Class A, EN 61000-4-6
Dimensions & Weight
Width: 17.3 inches
Depth: 21.8 inches
Height: 1.7 inches
Weight: 22.99 lbs
Environmental Parameters
Min Operating Temperature: 32°F
Max Operating Temperature: 104°F
Humidity Range Operating: 5 – 90% (non-condensing)
