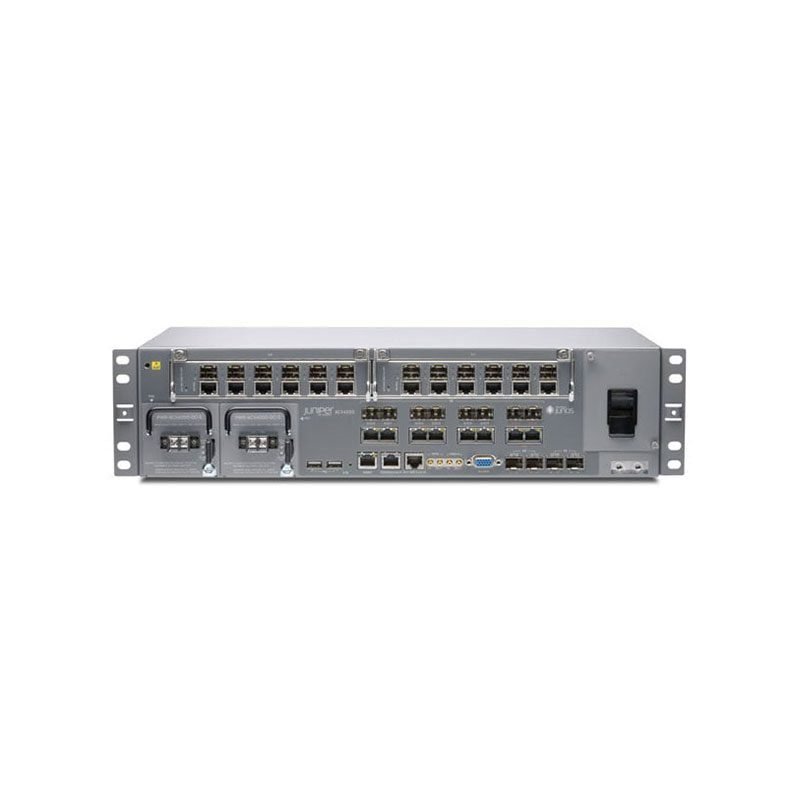

ACX4000BASE-AC Technical Specifications
Juniper Networks ACX Series 4000 Router
Manufacturer: Netscreen
Brand: Juniper, Juniper Networks
Product Line: Juniper Networks ACX Series
Model: 4000
Packaged Quantity: 1
Modem
Type: None
Networking
Type: Router
Connectivity Technology: Wired
Data Link Protocol: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet
Routing Protocol: MPLS
Remote Management Protocol: SNMP 1, SNMP 2, SNMP 3, CLI
Data Transfer Rate: 60 Gbps
Key Features: VPN support
Features: High Availability, Class of Service (CoS), VPN support, Call Admission Control (CAC), Timing support, PoE++
Compliant Standards: G.703
Expansion Slots
Expansion Slots: 2 (total) / 2 (free) x Modular Interface Card (MIC)
Interface Provided
Interfaces: Alarm: 4 x output, Management: 1 x console, 6 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Alarm: 4 x input, 2 x 10Gb Ethernet / 1Gb Ethernet – SFP+, Serial: 1 x RS-232, 2 x 10Base-T/100Base-TX/1000Base-T (PoE++) – RJ-45, 10 x 1000Base-X – SFP (mini-GBIC)
Power Device
Type: Internal power supply
Installed Qty: 2
Max Supported Qty: 2
Nominal Voltage: AC 120/230 V
Frequency Required: 50/60 hertz
Power Consumption Operational: 150 watts
System Requirements
OS Required: JUNOS
Miscellaneous
Color Category: Gray
Height (Rack Units): 2.5
Compliant Standards: EN 61000-4-11, EN 61000-4-4, TBR12, EN 61000-4-2, CS-03, EN 61000-4-6, UL 60950-1, FCC Part 15 A, GR-1089-CORE, R&TTE, ETSI, EN 61000-4-5, TBR21, VCCI Class B, EN 61000-3-3, TBR13, EN 61000-4-3, EN55022 Class A, IEC 60950-1, EN 60950-1, FCC Part 68, GR-63-CORE, CB, CISPR 22 Class A, EN 61000-3-2, EN 60825-1, JATE, NEBS level 3, ETS 300 753, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width: 17.5 inches
Depth: 9.3 inches
Height: 4.3 inches
Weight: 23.85 lbs
Environmental Parameters
Min Operating Temperature: -40 degrees Fahrenheit
Max Operating Temperature: 158 degrees Fahrenheit
Humidity Range Operating: 0 – 95% (non-condensing)
