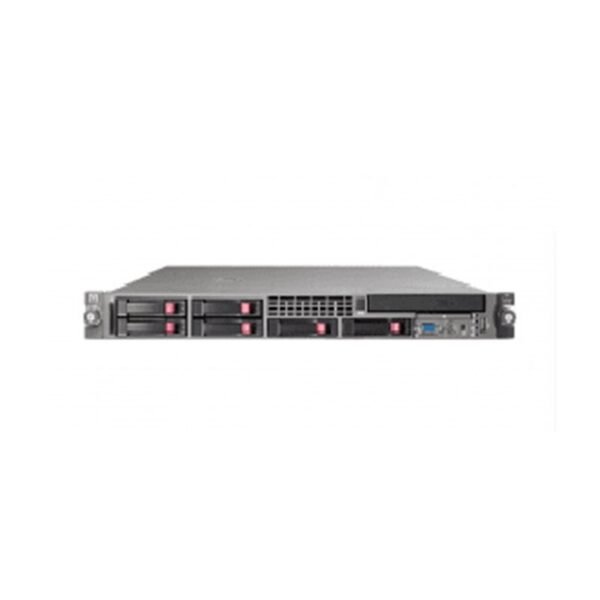

867447-S01 HP Proliant DL360 Gen9 Rack Server

867447-S01 Technical Specifications

HP Proliant DL360 Gen9 Smart Buy with Intel Xeon E5-2620V4

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 867447-S01
Product Name: HP Proliant DL360 Gen9 1U Rack Mountable Server (Smart Buy)
PROCESSOR & CHIPSET:
CPU: Intel Xeon E5-2620v4 / 2.1 GHz
Max Turbo Speed: 3.0 GHz
Cores: Octa-core (8 Cores)
CPU Quantity: 1 (Max 2, Upgradable)
Main Features: Hyper-Threading, Intel Turbo Boost Technology 2
CACHE MEMORY:
Installed Size: 20 MB
Cache Per Processor: 20 MB
MEMORY:
Installed Size: 16 GB (Max 384 GB)
Technology: DDR4 SDRAM – Advanced ECC
Speed: 2133 MHz
Specification Compliance: PC4-19200
Form Factor: DIMM 288-Pin
RAM Slots: 24 x DDR4 RAM Slots
Features: Registered, Online Spare Memory, Quad Channel Architecture
Configuration: 1 x 16 GB
Supported RAM: PC4-17000 – 768 GB (Load-Reduced) | PC4-17000 – 384 GB (Registered)
STORAGE CONTROLLERS:
Type: 1 x RAID – PCIe 3.0 x8
Interface: SATA 6Gb/s / SAS 12Gb/s
Controller: Smart Array P440ar with 2GB FBWC
Channels: 8
RAID Levels: 0, 1, 5, 6, 10, 50, 60
Buffer Size: 2 GB
DISPLAY & GRAPHICS:
Graphics Processor: Matrox G200
Video Interfaces: VGA
NETWORK & COMMUNICATION:
Ethernet Ports: 4 x Gigabit Ethernet
Controller: HP 331i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: Integrated Lights-Out 4
Features: Wake On LAN, PXE Support
Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION:
Type: Hot Plug Power Supply
Redundancy: Yes (1+1)
Installed Qty: 1 (Max 2)
