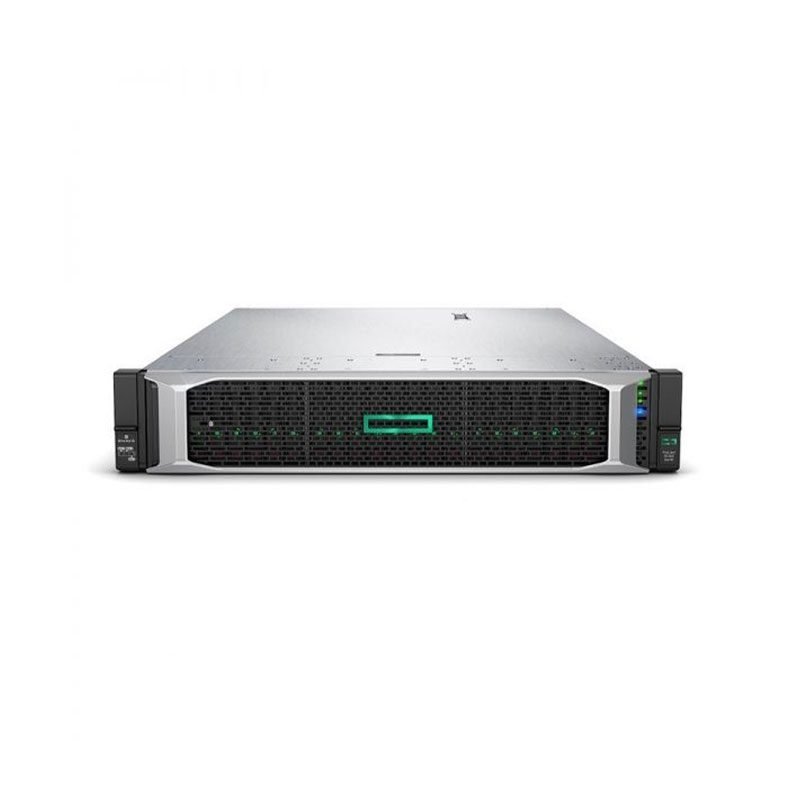

839295-S01 HP Proliant DL120 Gen9 Rack Server

Technical Specifications for 839295-S01

HP Proliant DL120 Gen9 Server Configuration

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 839295-S01
Product Name: HP Proliant DL120 Gen9 – 1U Rack Mount (S-Buy)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2609v4, 1.7GHz
Quickpath Interconnect: 6.4 GT/s
Number of Cores: 8 Core
64-Bit Computing: Yes
Socket Compatibility: FCLGA2011-3
Installed Quantity: 1
Max Supported Quantity: 1
CPU Upgradability: Yes
Main Processor Features: Hyper-Threading and Intel Turbo Boost 2.0
CACHE MEMORY:
Cache Memory Type: Smart Cache
Installed Size: 20 MB
Cache Per Processor: 20 MB
MEMORY:
Installed Size: 8 GB; Max: 384 GB
Technology: DDR4 SDRAM
Memory Speed: 1866 MHz
Form Factor: DIMM 288-Pin
RAM Slots: 8
Features: Registered, HP SmartMemory
Configuration: 1 x 8 GB
Max RAM Supported: 384 GB – Registered, 768 GB – Load-Reduced
STORAGE:
Hard Drive: None
Optical Drive: None
STORAGE CONTROLLERS:
Controller: Smart Array B140i
Buffer Size: None
Disk Drive: Up to 6GB/s SATA
Connectors: 10 Internal SATA
Server Interface: X4 PCIe 2.0
SATA Speed: 6GB/s
Logical Drives Supported: Up to 8 Logical Volumes
RAID Support: RAID 0, 1, 5, 10, 50
GRAPHICS CONTROLLERS:
Type: Integrated
Graphics Processor: Matrox G200eh2
Video Interfaces: VGA
NETWORK & COMMUNICATION:
Ethernet Controller: HP Ethernet 1GB 2-Port 361i Adapter
Network Interface: 10Base-T/100Base-TX/1000Base-TX
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: Integrated Lights-Out 4
Features: Wake On LAN, PXE Support
Connector: RJ-45 (Two)
Compliant Standards: IEEE 802.3, 802.3U, 802.3AB
POWER DESCRIPTION:
Power Supply Type: Flex Slot Platinum Plus
Installed Quantity: 1
Nominal Voltage: AC 120/230V (50/60 Hz)
Power Provided: 550 Watts.
