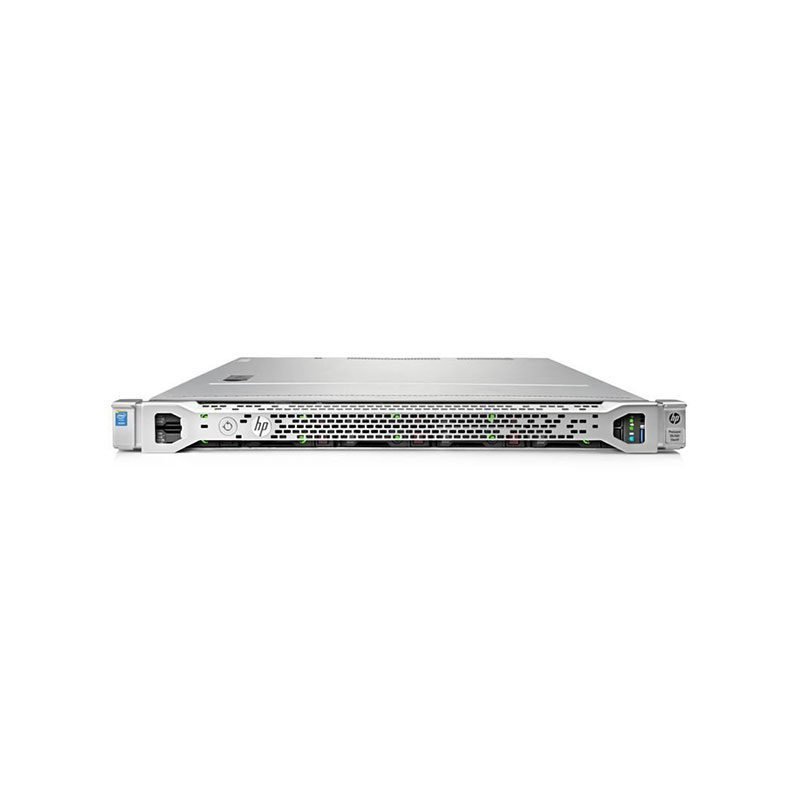

830571-B21 HP Proliant DL160 Gen9 Rack Server

830571-B21 Technical Specifications

HP Proliant DL160 Gen9 Entry Model with Intel Xeon E5-2603V4

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 830571-B21
Product Name: Proliant DL160 Gen9 – 1U Rack Mount Server
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2603v4 / 1.7 GHz
Number of Cores: 6
64-Bit Computing: Yes
Installed Quantity: 1
Max Supported Quantity: 2
CPU Upgradability: Yes
CACHE MEMORY:
Installed Size: L3 Cache – 15 MB
Cache Per Processor: 15 MB
MEMORY:
Installed Size: 8 GB (Max 1 TB)
Technology: DDR4 SDRAM
Effective Memory Speed: 1866 MHz
Rated Memory Speed: 2400 MHz
Memory Specification Compliance: PC4-19200
Form Factor: DIMM 288-Pin
Memory Slots: 16 x DDR4 RAM Slots
Features: Registered, HP Smart Memory
Configuration Features: 1 x 8 GB
Supported RAM: PC4-17000 – 512 GB Registered, PC4-19200 – 1 TB Load-Reduced
STORAGE:
Hard Drive: None
Optical Drive: None
STORAGE CONTROLLERS:
Type: 1 x RAID
Controller Interface Type: SATA 6Gb/s
Storage Controller Name: HP Dynamic Smart Array B140i
Channel Quantity: 8
RAID Level: RAID 0, RAID 1, RAID 5
DISPLAY & GRAPHICS CONTROLLERS:
Graphics Controller Type: Integrated Matrox G200eh2
NETWORK & COMMUNICATION:
Networking: Integrated Network Adapter
Interface (Bus) Type: PCI Express 2.0 x2
Ethernet Ports: 2x Gigabit Ethernet
Ethernet Controllers: HP NC361i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az
POWER DESCRIPTION:
Device Type: Non-Hot-Plug Power Supply
Installed Quantity: 1
Nominal Voltage: AC 100-240V (50/60 Hz)
Power Provided: 550 Watt
