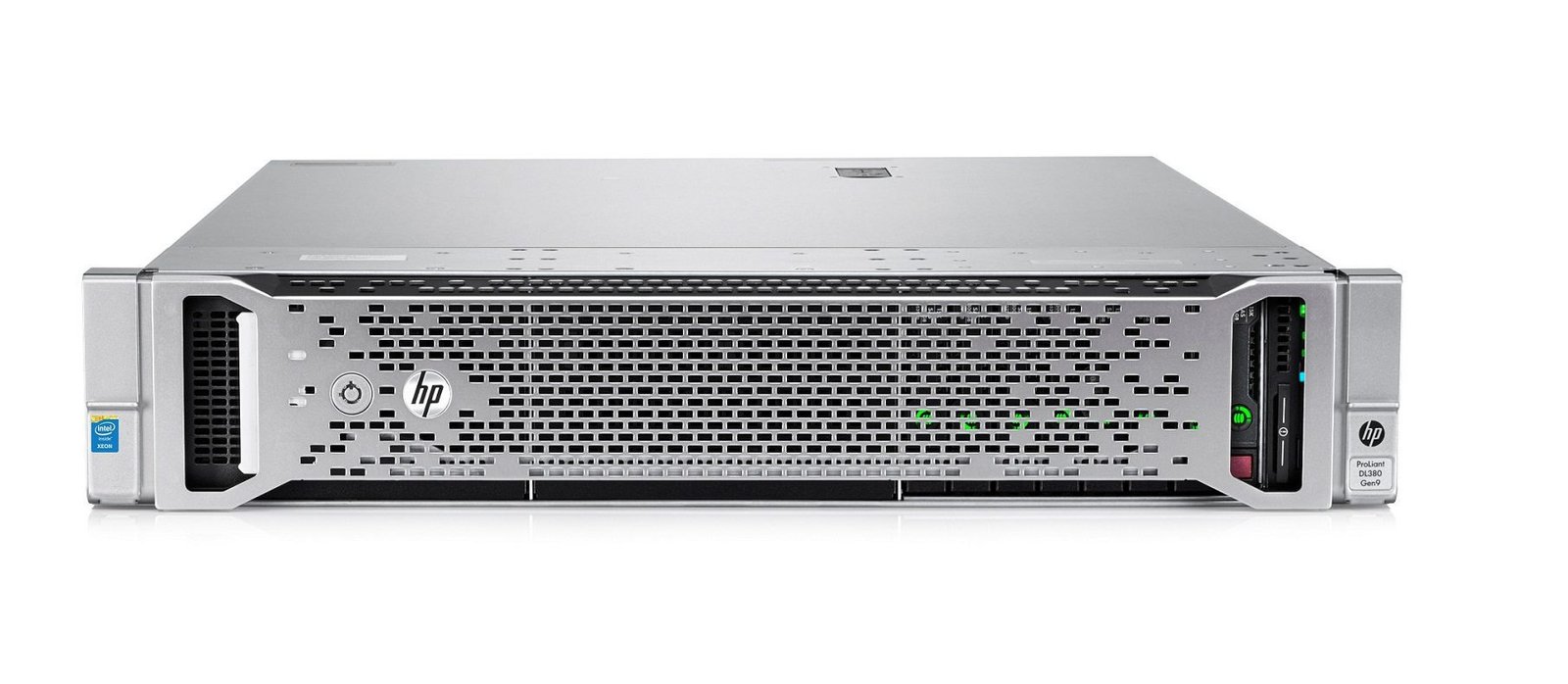

826681-B21 HP Proliant DL380 G9 Rack Server

Description

826681-B21 Technical Specifications

HP Proliant DL380 G9 Entry Model with Intel Xeon E5-2609V4

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 826681-B21
Product Name: Proliant DL380 Gen9 – 2U Rack Mount Server (Entry Model)
PROCESSOR & CHIPSET:
CPU: Intel Xeon E5-2609v4 / 1.7 GHz
Number of Cores: 8 Cores
Intel QPI Speed: 8 GT/s
CPU Quantity: 1 (Max 2)
CPU Upgradability: Yes
Main Features: Hyper-Threading, Intel Turbo Boost Technology 2
CACHE MEMORY:
Type: Smart Cache
Installed Size: 20 MB
Cache per Processor: 20 MB
MEMORY:
Installed Size: 8 GB (Max 384 GB)
Technology: DDR4 SDRAM
Speed: 1866 MHz
Form Factor: DIMM 288-Pin
Slots: 24 x DDR4 RAM Slots
Features: Registered, HP SmartMemory
Configuration: 1 x 8 GB
Supported RAM: 384 GB (Registered) / 768 GB (Load-Reduced)
STORAGE:
Hard Drive: None
STORAGE CONTROLLERS:
Type: 1 x RAID
Interface: SATA 6Gb/s
Controller: HP Dynamic Smart Array B140i
Channels: 10
RAID Levels: 0, 1, 5, 10
NETWORK:
Ethernet Ports: 2 x 10 Gigabit
Controller: HP 331i
Protocols: Ethernet, Fast Ethernet, Gigabit, 10 Gigabit
Remote Management: Integrated Lights-Out 4
Features: Wake On LAN, PXE Support
Compliant Standards: IEEE 802.3, 802.3U, 802.3AB
POWER DESCRIPTION:
Type: Hot Plug Power Supply
Redundancy: Yes (1+1 scheme)
Installed Quantity: 1 (Max 2)
Nominal Voltage: AC 120/230 V
Power: 500 Watts
80 Plus Certification: 80 Plus Platinum.
