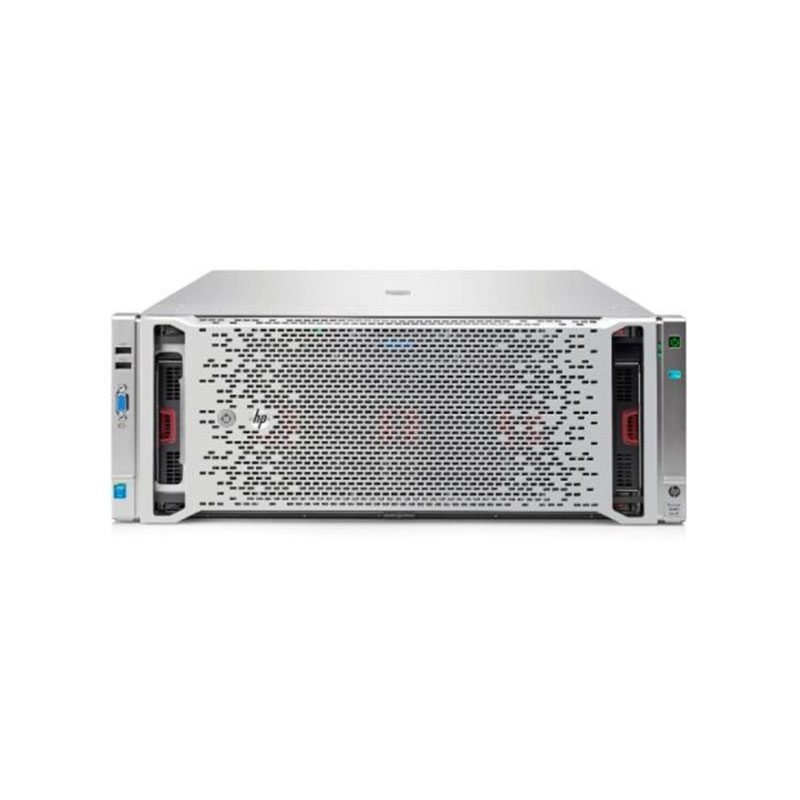

816817-B21 HP Proliant DL580 GEN9 4U Rack Server

Description

816817-B21 Technical Specifications

HP Proliant DL580 GEN9 Base Model Specifications

GENERAL INFORMATION:

• Manufacturer: Hewlett Packard
• Manufacturer Part Number: 816817-B21
• Product Name: Proliant DL580 Gen9 4U Rack Mount Server

PROCESSOR & CHIPSET:

• Processor Type: Intel Xeon E5-4809v4 at 2.1GHz
• Quickpath Interconnect: 6.4 GT/s
• Number Of Cores: 8
• 64-Bit Computing: Yes
• Compatible Processor Socket: FCLGA2011
• Installed Qty: 2
• Max Supported Qty: 4
• Chipset Type: Intel C602J Series

CACHE MEMORY:

• Cache Memory Type: Smart Cache
• Installed Size: 40MB (20MB per processor)

MEMORY:

• Installed Size: 64GB (4x16GB) / Max: 6TB
• Technology: DDR4 SDRAM PC4-17000R (DDR4-2133P)
• Form Factor: DIMM 288-Pin
• Total Memory Slots: 96 DDR4 Slots

STORAGE:

• Hard Drive: None
• Optical Drive: None

STORAGE CONTROLLERS:

• Type: 1 x RAID
• Interface: SATA 6Gb/s / SAS 12Gb/s
• Controller Name: Smart Array P830i with 2GB FBWC
• Channel Qty: 2
• RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Buffer Size: 2GB

NETWORK & COMMUNICATION:

• Ethernet Controller: HP FlexFabric 1GB 4-Port 331FLR Adapter
• Network Processor: Broadcom BCM5719 Chipset
• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4
• Management Controller: RJ-45 (Two)
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB

POWER DESCRIPTION:

• Device Type: Flex Slot Platinum Plus Hot-Plug Power Supply
• Installed Qty: 2
• Max Supported Qty: 2
• Nominal Voltage: AC 100-230V (50/60 Hz)
• Power Provided: 1200 Watt

DIMENSIONS & WEIGHT:

• Depth: 29 inches
• Width: 17.48 inches
• Height: 6.88 inches
• Weight: 70.94 lbs
