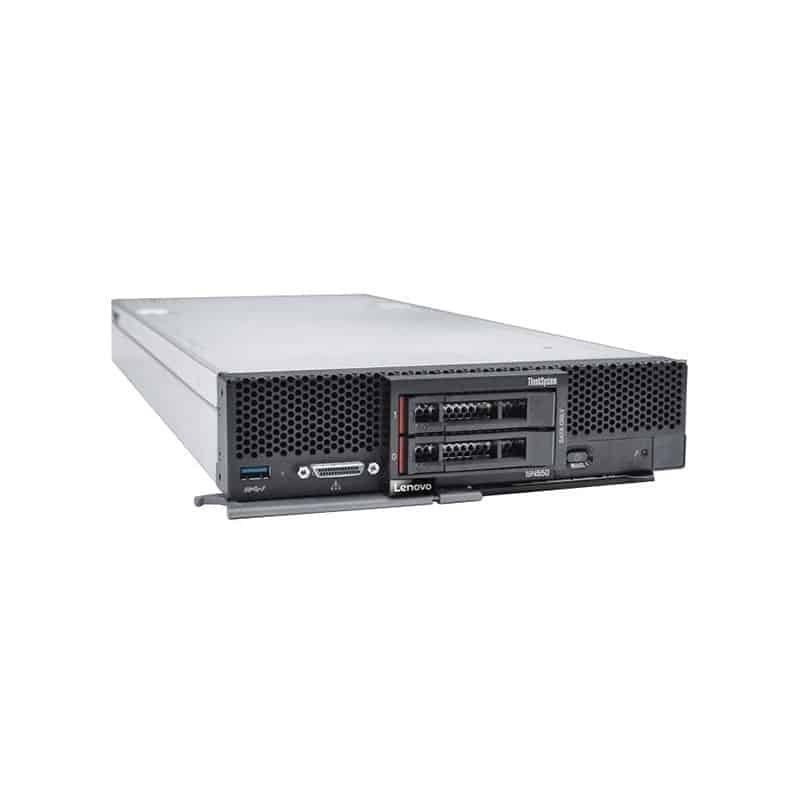

7X16A07DNA Lenovo Think System SN550 Blade Server

Description

7X16A07DNA Technical Specifications

Lenovo ThinkSystem SN550 – Blade Server

Chassis

• Form Factor: Blade
• Manufacturer Form Factor: Blade
• Server Swappable Drive Interface: SATA/PCI Express

Display

• Type: None

Expansion Slots

• Type: Expansion slot
• Type: M.2 Card

Hard Drive

• Type: No HDD
• Type: None

Optical Storage

• Drive Type: No optical drive
• Type: None

OS Provided

• Type: No operating system

Power Device

• Type: None

RAM Supported

• Data Integrity Check: ECC
• Max Size: 768 GB
• Registered or Buffered: Registered
• Max Size: 1.5 TB
• Registered or Buffered: Load-Reduced

Video Memory

• Installed Size: 16 MB

Environmental Parameters

• Max Operating Temperature: 104 °F
• Min Operating Temperature: 41 °F

Header

• Brand: Lenovo
• Manufacturer: Lenovo System X
• Model: 7X16
• Packaged Quantity: 1
• Product Line: Lenovo ThinkSystem SN550

Interface Provided

• Location: 1 in front
• Qty: 1
• Type: USB 3.0
• Type: Management

Mainboard

• Chipset Type: Intel C624

Miscellaneous

• Color Category: Black
• Compliant Standards: ASHRAE Class A3, BSMI, CB, CISPR 22 Class A, CNS 13438 Class A, CNS 14336, CSA C22.2 No. 60950-1, EK1-ITB2000, EN 60950-1, EN55024, FCC Part 15 A, IEC 60950-1, KN22 Class A, KN24, TUV GS, UL 60950-1, VCCI Class A

Networking

• Remote Management Controller: XClarity Controller (XCC)

Printer

• Type: None

Processor

• Clock Speed: 2.3 GHz
• Installed Qty: 1
• Manufacturer: Intel
• Max Supported Qty: 2
• Max Turbo Speed: 3.9 GHz
• Number of Cores: 16-core
• Processor Number: 5218
• Server Scalability: 2-way
• Type: Xeon Gold
• Upgradability: Upgradable
