7X06A0DJCN Technical Specification

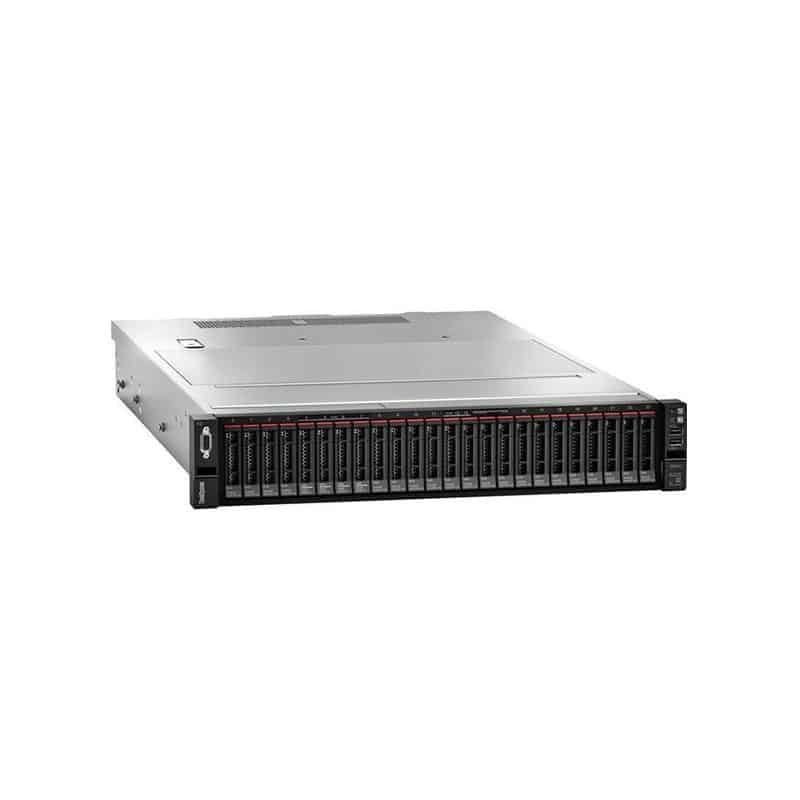

Lenovo ThinkSystem SR650 Server
This robust 2U rack server is designed to support up to two 2nd Generation Intel® Xeon® Platinum processors (up to 205W). Memory capacity can reach an impressive 9TB, utilizing 24 DIMM slots with 128GB DIMMs and enhanced by Intel® Optane™ DC Persistent Memory, operating at 2666/2933MHz TruDDR4.
For expansion, the server accommodates up to 7 PCIe 3.0 slots, including a dedicated PCIe slot for RAID adapters. It features versatile drive bays, with options for up to 14x 3.5″ or 24x 2.5″ hot-swap bays, and supports up to 12x AnyBay and 24x NVMe bays, along with 2x M.2 boot drives (RAID 1).
In terms of HBA/RAID support, it offers HW RAID (up to 24 ports) with flash cache and up to 16 ports HBA. Security features include TPM 1.2/2.0, predictive failure analysis (PFA), and hot-swap capabilities for drives, fans, and power supply units. The server operates efficiently in environments up to 45°C and includes optical path diagnostic LEDs.
Networking capabilities consist of 2/4-port 1GbE LOM and 2/4-port 10GbE LOM options (Base-T or SFP+), along with a dedicated 1GbE management port. Power supply options include two hot-swap/redundant configurations: 550W/750W/1100W/1600W 80 PLUS Platinum or 750W 80 PLUS Titanium, as well as -48V DC 80 PLUS Platinum.
For system management, it incorporates XClarity Controller for embedded management, XClarity Administrator for centralized infrastructure delivery, and XClarity Energy Manager for centralized server power management. Supported operating systems include Microsoft, Red Hat, SUSE, and VMware. For further details, visit lenovopress.com/osig.
