Description

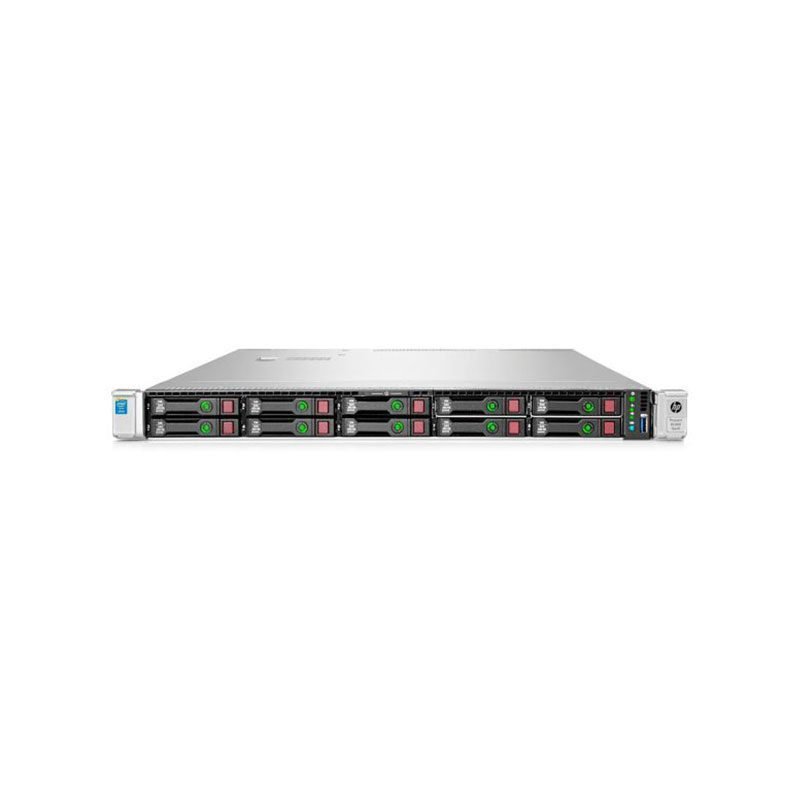

HP Proliant DL360 G9 Technical Specifications
Powerful Dual Intel Xeon E5-2670v3 Configuration
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 780022-S01
Product Name: Proliant DL360 Gen9 – 1U Rack Mount (S-Buy)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2670v3 at 2.3GHz
Max Turbo Speed: 3.1GHz
Quickpath Interconnect: 9.60 GT/s
Number Of Cores: 12 Cores
64-Bit Computing: Yes
Compatible Processor Socket: FCLGA2011-3
Installed Qty: 2
Max Supported Qty: 2
Chipset Type: Intel C610 Series
CACHE MEMORY:
Cache Memory Type: Smart Cache
Installed Size: 30MB
MEMORY:
Installed Size: 64GB (4x16GB) Dual Rank X4 / 384GB Max
Technology: DDR4 SDRAM PC4-17000R (DDR4-2133)
Form Factor: DIMM 288-Pin
Total Memory Slots: 24 DDR4 Slots
STORAGE:
Hard Drive: None
Optical Drive: None
STORAGE CONTROLLERS:
Storage Controller Name: Smart Array P440ar
Buffer Size: 2GB
Disk Drive: 12GB/s SAS / 6GB/s SATA
SAS Port Link Rate: 12GB/s per physical link supported
PCIe Link Rate: PCI Express 3.0 x8
Physical Drives: Up to 26 Drives
Logical Drives Supported: Up to 64 Logical Drives
RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
DISPLAY & GRAPHICS CONTROLLERS:
Graphics Controller Type: Integrated Matrox G200
NETWORK & COMMUNICATION:
Ethernet Controller: HP FlexFabric 10GB 2-Port 533FLR-T Adapter
Network Processor: Broadcom BCM57810S Chipset
Data Rate: Two Ports, Each at 20 Gbps Full Duplex
On-Board Buffer Memory: 256MB
Bus Type: PCI Express V2.0 (Gen 2) x8
Connector: RJ-45 (Two)
Cable Distance: Maximum distances for Cat6 cable are 30 meters (98 feet)
Maximum distances for Cat6a are 100 meters (328 feet)
POWER DESCRIPTION:
Device Type: Flex Slot Platinum Plus Hot Plug Power Supply
Installed Qty: 2
Max Supported Qty: 2
Nominal Voltage: AC 100-240V (50/60 Hz)
Power Provided: 800 Watts
