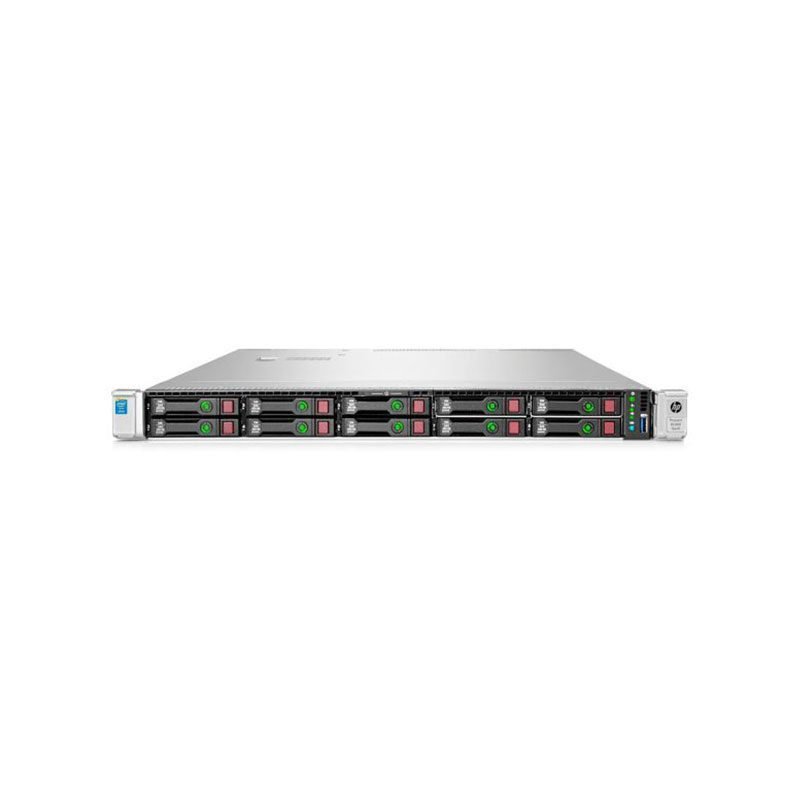

780020-S01 HP Proliant DL360 G9 1U Rack Server with Intel Xeon 10-Core

Description

Technical Specifications for 780020-S01

HP Proliant DL360 G9 with Intel Xeon E5-2660v3

GENERAL INFORMATION:

• Manufacturer: Hewlett Packard
• Part Number: 780020-S01
• Product Name: Proliant DL360 Gen9 – 1U Rack Mount Server (S-Buy)

PROCESSOR & CHIPSET:

• Processor Type: Intel Xeon E5-2660v3, 2.6GHz
• Max Turbo Speed: 3.3GHz
• QuickPath Interconnect: 9.60 GT/s
• Number of Cores: 10
• Compatible Socket: FCLGA2011-3
• Installed Quantity: 1 (upgradable to 2)
• Chipset: Intel C610 Series

CACHE MEMORY:

• Type: Smart Cache, Size: 25MB

MEMORY:

• Installed: 16GB (1x16GB) Dual Rank X4, Max: 384GB
• Technology: DDR4 SDRAM PC4-17000R (DDR4-2133)
• Form Factor: DIMM 288-Pin
• Total Slots: 24 DDR4 Slots

STORAGE:

• Hard Drive: None
• Optical Drive: None
• Storage Controller: Smart Array P440ar with 2GB Buffer
• Supported Drives: Up to 26 Physical Drives, 64 Logical Drives
• RAID Support: Various RAID levels including 0, 1, 5, 6, 10, 50, 60

NETWORK:

• Ethernet Controller: HP Ethernet 1GB 4-Port 331i Adapter
• Remote Management: Integrated Lights-Out 4
• Features: Wake On LAN, PXE Support

POWER:

• Type: Flex Slot Platinum Plus Hot-Plug Power Supply
• Installed Quantity: 2, Power Provided: 800 Watts
