77P8504 Technical Specifications

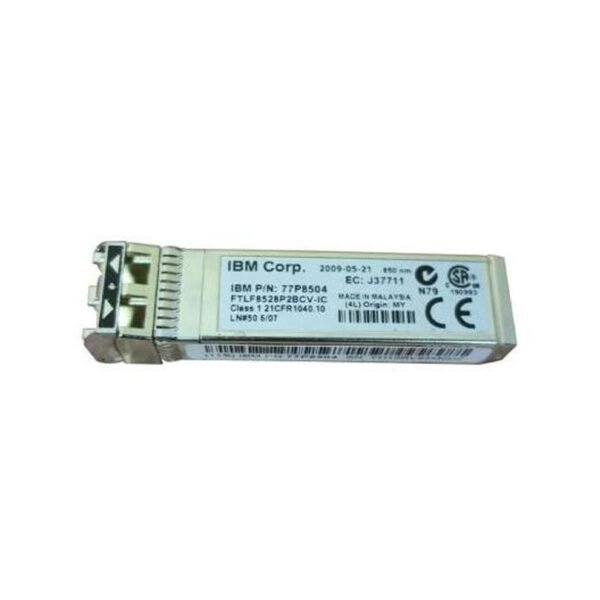

IBM 8 Gb SFP+ SW Optical Transceiver
This optical transceiver supports data rates of up to 8.5 Gbps, featuring a 850nm VCSEL transmitter and a PIN photo-detector for effective signal transmission. It utilizes a duplex LC connector and is housed in a robust metal enclosure that minimizes electromagnetic interference (EMI). The device includes Digital Diagnostics Monitoring (DDM) compliant with SFF-8472, providing real-time performance metrics through a serial interface. Operating on a single 3.3V power supply, this transceiver is RoHS compliant and lead-free.
Key specifications include:
- Form Factor: SFP+
- Data Rate: 8 Gb/s
- Wavelength: 850 nm
- Fiber Type: MMF
- Maximum Distance: 300 m
- Optical Components: VCSEL/PIN
- Transmitter Power: -6 to -1 dBm
- Extinction Ratio: > 3.5 dB
- Receiver Sensitivity: < -10 dBm
- Receiver Overload: > 0.5 dBm
- Connector: LC Duplex
- Digital Diagnostic Monitoring: Yes
The operational temperature ranges from 0°C to 70°C, while storage conditions are between -40°C and 85°C. The weight of the transceiver is approximately 0.03 kg.
