7606S-RSP7XL-10G-R Technical Specifications

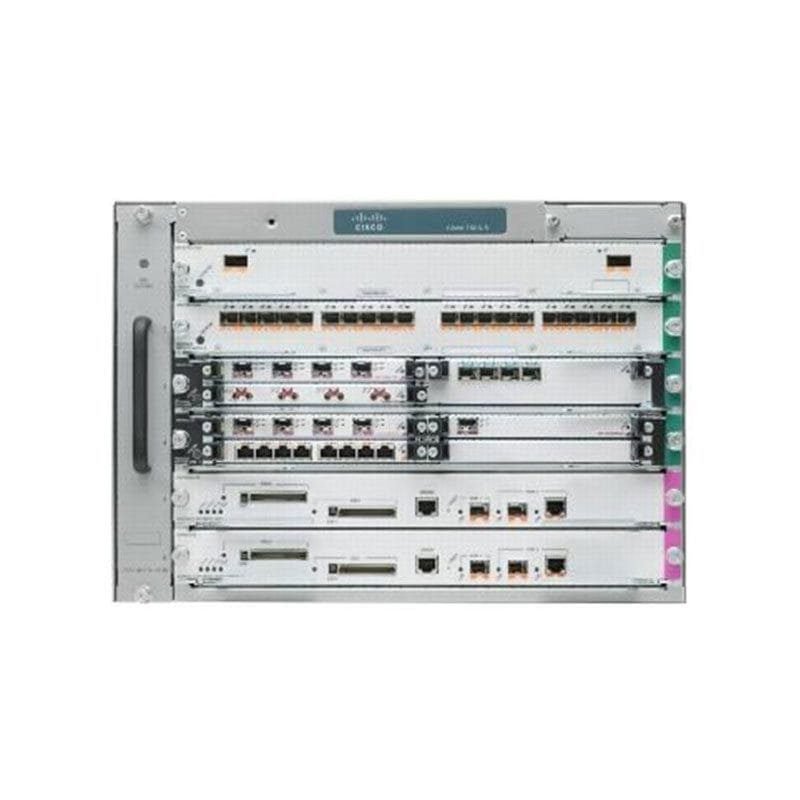

Cisco 7606S Chassis Bundle
This router device is equipped with two Cisco 7606 Series Route Switch Processor 720 10GE with PFC-3C, housed in a modular 7U rack-mountable enclosure. The model 7606S is a comprehensive router chassis bundle that supports wired connectivity technologies including Ethernet, Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet.
In terms of performance, it offers IPv4 routing at 400 Mbps and IPv6 routing at 200 Mbps, with a switching capacity of 720 Gbps. The router can handle up to 1,000,000 IPv4 routes and 512,000 IPv6 routes, along with 256,000 NetFlow entries and ACL rules. It supports various network protocols such as TCP/IP, ICMP/IP, and routing protocols including OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, and PIM-DM.
Key features include Layer 3 and Layer 2 switching, DHCP and MPLS support, VLAN support, IGMP snooping, and Quality of Service (QoS). Compliance with standards like IEEE 802.1x and NEBS level 3 ensures reliability. The device includes multiple interfaces, expansion slots, and is equipped with an internal hot-plug power supply with redundancy. Dimensions are 17.2 in width, 21.5 in depth, and 12.2 in height, weighing 40.79 lbs.
