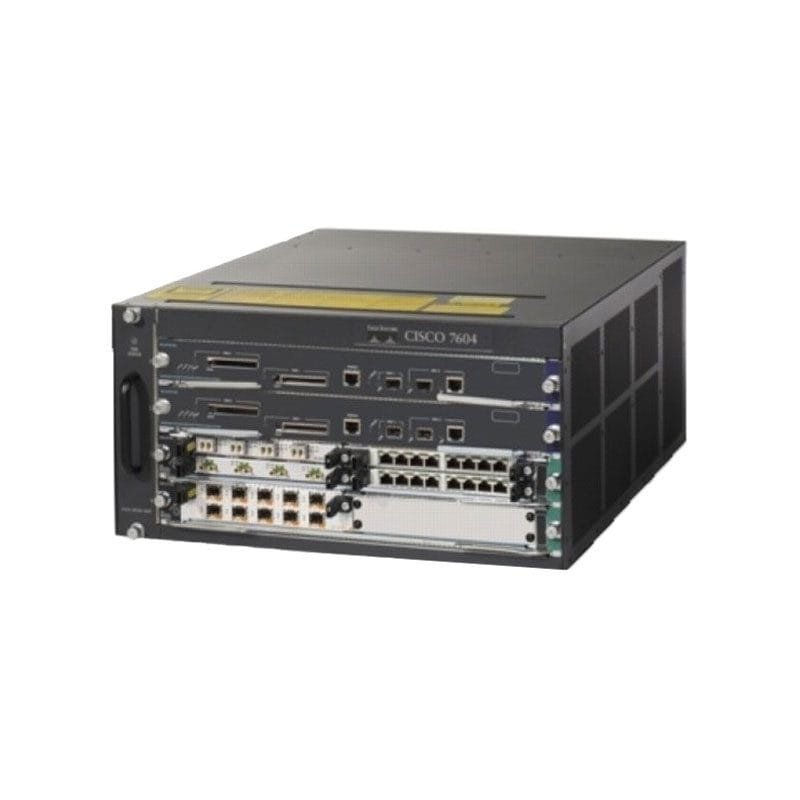

7604-RSP7C-10G-R Cisco 7604 Router Bundle for High-Performance Networking

7604-RSP7C-10G-R Technical Specifications

Cisco 7604 Chassis, 4-slot, Red System, 2RSP720-3C-10GE, 2PS

General
Device Type: Router – featuring 2 x Cisco 7604 Series Route Switch Processor 720 with 10 Gigabit Ethernet (RSP720-3C-10GE). Enclosure Type: Modular, rack-mountable, desktop – 5U. Product Type: Router Chassis, Router Bundle. Connectivity Technology: Wired. Data Link Protocol: 10 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet. Performance: Switching capacity of 720 Gbps; IPv4 routing at 400 Mbps; IPv6 routing at 200 Mbps. Capacity: 128,000 ACL rules and NetFlow entries. Network Protocols: TCP/IP, ICMP/IP. Routing Protocols: OSPF, RIP, BGP-4, IS-IS, PIM-SM, PIM-DM, GRE. Features include Layer 3 and Layer 2 switching, dynamic IP assignment, DHCP, NAT, MPLS, VLAN support, IGMP snooping, traffic shaping, DoS prevention, ACL support, and QoS. Compliant Standards: NEBS level 3, FCC Class A certified, IEEE 802.1x, among others. RAM: 4 GB, Flash Memory: 1 GB. Expansion / Connectivity
Interfaces: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45; Management: 2 x console – RJ-45; 4 x SFP (mini-GBIC). Expansion Slots: 4 total, 2 free for expansion; 4 total, 2 free for CompactFlash Card – type II. Power
Power Device: Internal power supply – hot-plug. Power Redundancy: Yes. Installed Qty: 2 (installed) / 2 (max). Miscellaneous
Mounting Kit Included. MTBF: 7 years. Dimensions & Weight
Width: 17.5 in; Depth: 21.7 in; Height: 8.7 in. Environmental Parameters
Min Operating Temperature: 32 °F; Max Operating Temperature: 104 °F; Humidity Range Operating: 10 – 85%.
