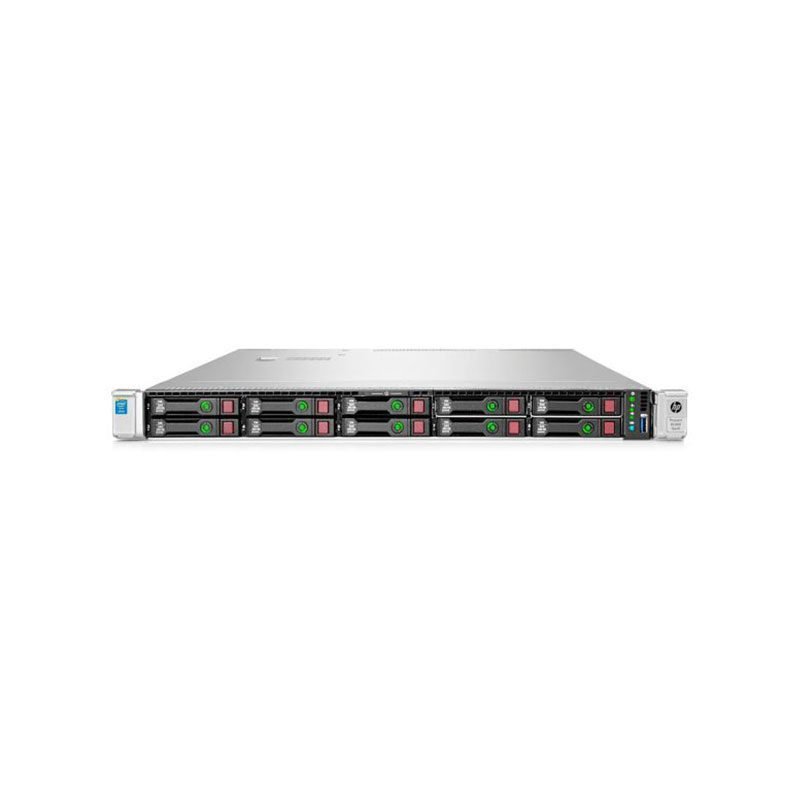

755263-B21 HP Proliant DL360 G9 Performance Server with Dual Intel Xeon

Description

755263-B21 Technical Specifications

HP Proliant DL360 G9 Performance Server

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 755263-B21
Product Name: Proliant DL360 Gen9 – 1U Rack Mount (Performance Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2650v3 at 2.3GHz
Max Turbo Speed: 3.0 GHz
Quickpath Interconnect: 9.60 GT/s
Number of Cores: 10
64-Bit Computing: Yes
Compatible Processor Socket: FCLGA2011-3
Installed Quantity: 2
Max Supported Quantity: 2
Chipset Type: Intel C610 Series
CACHE MEMORY:
Cache Memory Type: Smart Cache
Installed Size: 25MB
MEMORY:
Installed Size: 32GB (2x16GB) Dual Rank X4 / Max 384GB
Technology: DDR4 SDRAM PC4-17000R (DDR4-2133)
Form Factor: DIMM 288-Pin
Total Memory Slots: 24 DDR4 Slots
STORAGE:
Hard Drive: None
Optical Drive: None
STORAGE CONTROLLERS:
Storage Controller Name: Smart Array P440ar
Buffer Size: 2GB
Disk Drive: 12GB/s SAS / 6GB/s SATA
SAS Port Link Rate: 12GB/s per Physical Link Supported
PCIe Link Rate: PCI Express 3.0 x8 (PCIe3 x8)
Physical Drives: Up to 26 Drives
Logical Drives Supported: Up to 64 Logical Drives
RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
DISPLAY & GRAPHICS CONTROLLERS:
Graphics Controller Type: Integrated Matrox G200
NETWORK & COMMUNICATION:
Ethernet Controller: HP Ethernet 1GB 4-Port 331i Adapter
Network Processor: Broadcom BCM5719 Chipset
Ethernet Ports: 4 x Gigabit Ethernet Duplex
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: Integrated Lights-Out 4
Remote Management Controller: RJ-45 (Two)
Features: Wake On LAN (WoL), PXE Support
Compliant Standards: IEEE 802.3, 802.3U, 802.3AB
POWER DESCRIPTION:
Device Type: Flex Slot Platinum Plus Hot Plug Power Supply
Installed Quantity: 2
Max Supported Quantity: 2
Nominal Voltage: AC 100-240V (50/60 Hz)
Power Provided: 800 Watts.
