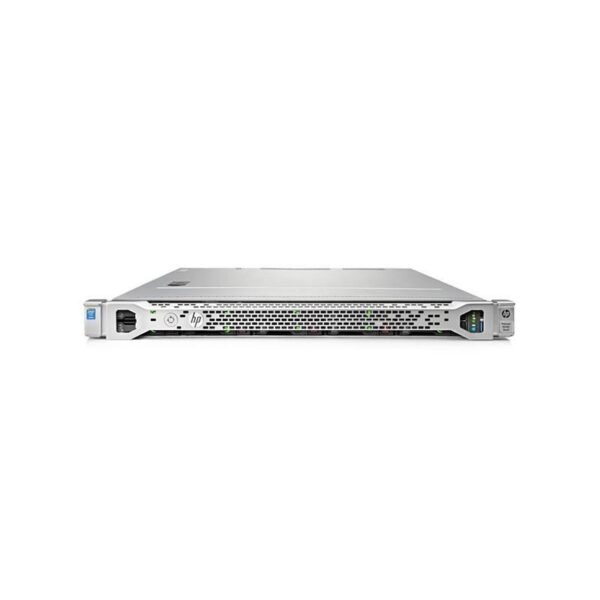

755258-B21 HP Proliant DL360 G9 CTO Chassis – No CPU

755258-B21 Technical Specifications

HP Proliant DL360 G9 CTO Chassis – No CPU, No RAM

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 755258-B21
Product Name: Proliant DL360 Gen9 1U Rack Mount
PROCESSOR & CHIPSET:
Installed Processors: 0
Maximum Supported: 2
Upgrade Capability: Yes
RAM:
Installed Size: None
Max Capacity: 768GB
Type: DDR4 SDRAM
Form Factor: DIMM 288-Pin
Memory Slots: 24 DDR4 RAM Slots
Features: HP SmartMemory
Supported RAM: PC4-17000 – 384 GB – Registered, PC4-17000 – 768 GB – Load-Reduced
STORAGE & CONTROLLER:
Hard Drive: None
Storage Controller: Integrated SATA – PCI Express 2.0 X4
Controller Interface: Serial ATA-600
Storage Controller Name: HP Dynamic Smart Array B140i
Channel Quantity: 10
RAID Levels: 0, 1, 10, 5
NETWORK & COMMUNICATION:
Networking: Integrated
Ethernet Ports: 4x Gigabit Ethernet
Controller: HP 331i
Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION:
Type: Hot Plug Power Supply
Redundancy: Optional 1+1 (with optional power supply)
Installed Quantity: 0
Max Supported: 2
DIMENSIONS & WEIGHT:
Width: 17.1 in
Depth: 27.5 in
Height: 1.7 in
Weight: 27 lbs
