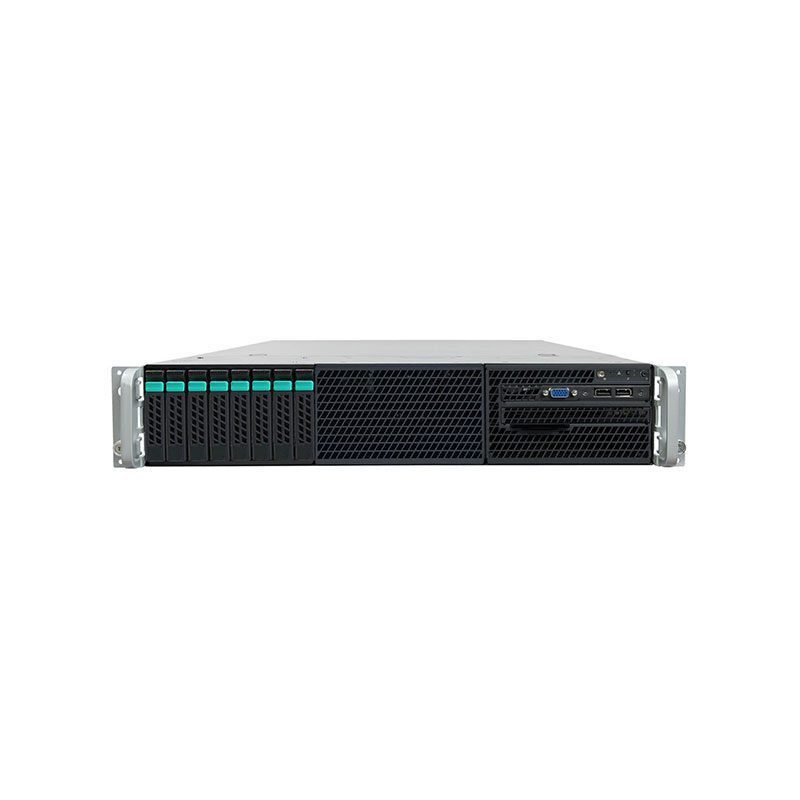

748597-001 HP Proliant DL380p G8 with Dual Xeon E5-2695v2 2.4GHz

Description

748597-001 Technical Specifications

HP Proliant DL380p G8 with Dual Xeon E5-2695v2 2.4GHz 12 Core

GENERAL INFORMATION:

• Manufacturer: Hewlett Packard
• Manufacturer Part Number: 748597-001
• Product Name: Proliant DL380p Gen8 2U Rack Mount

PROCESSOR & CHIPSET:

• Processor Type: Intel Xeon E5-2695v2 (2.4GHz, 12-Core, 30MB, 8.0GT/s QPI, 115W)
• Installed Processors: 2
• Supported Processors: 2
• Multi-Core Technology: Dodeca-Core (12 Core)
• Quickpath Interconnect: 8.0 GT/S
• 64-Bit Computing: Yes
• Upgradability: Yes
• Main Features: Hyper-Threading, Intel Turbo Boost Technology 2
• Chipset Model: Intel C600

CACHE MEMORY:

• Type: L3 Cache
• Installed Size: 60MB
• Per Processor: 30MB

RAM:

• Installed Size: 64GB
• Max Supported: 384GB
• Technology: DDR3 SDRAM
• Speed: 1866MHz
• Compliance: PC3-14900
• Form Factor: DIMM 240-Pin
• Total Slots: 24 DDR3
• Features: Registered, HP SmartMemory
• Configuration: 4 x 16GB

STORAGE:

• Hard Drive: None
• Max Internal Storage: 8 SFF SAS/SATA HDD Bays (expandable to 16)
• Optical Drive: DVD-Writer

STORAGE CONTROLLERS:

• Type: Integrated RAID (PCI Express 3.0 x8)
• Interface: SATA 6GB/s / SAS 6GB/s
• Channel Qty: 8
• Controller Name: Smart Array P420i with 1GB FBWC
• RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Buffer Size: 1GB

DISPLAY & GRAPHICS:

• Type: Integrated
• Controller Model: Matrox G200
• Video Interface: VGA

NETWORKING:

• Type: Plug-In Card
• Bus Type: PCI Express x4
• Ethernet Ports: 4 x Gigabit
• Controller: HP 331FLR
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, 802.3u, 802.1q, 802.3ab, 802.1p, 802.3ad (LACP)
