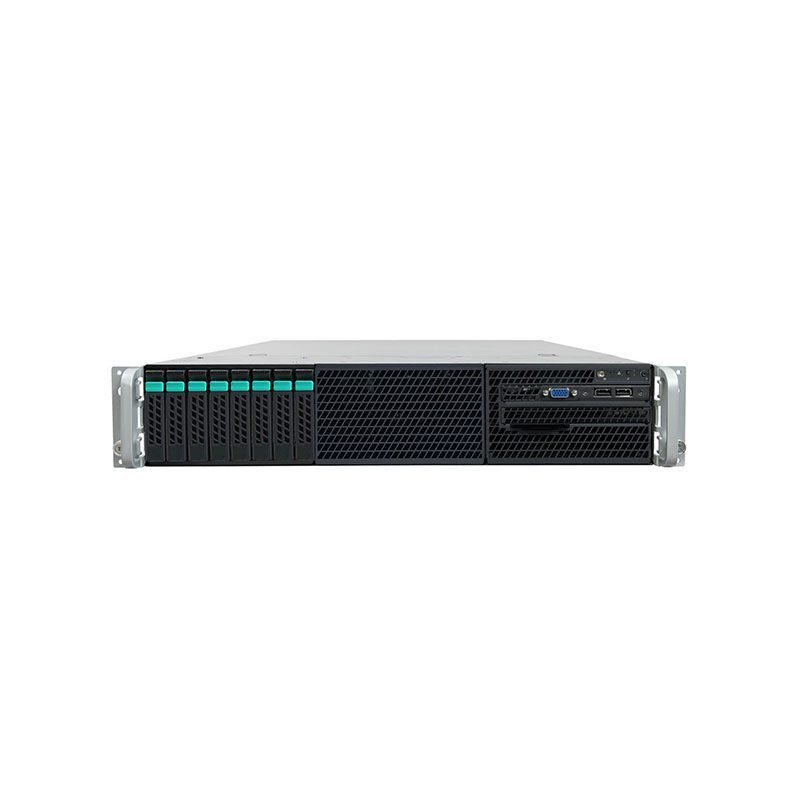

748594-001 HP Proliant DL380p G8 2U Rack Server with Xeon E5-2640v2 2.0GHz

Description

748594-001 Technical Specifications

HP Proliant DL380p G8 Rack Server with 1x Xeon E5-2640v2 2.0GHz

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 748594-001
Product Name: Proliant DL380p Gen8 2U Rack Mount
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2640v2 (2.0GHz, 8-Core, 20MB, 7.2GT/s QPI, 95W)
Installed Processors: 1 (supports 2)
Multi-Core Technology: Octa-Core (8 Cores)
Quickpath Interconnect: 7.2 GT/s
64-Bit Computing: Yes
Upgradability: Yes
Processor Features: Hyper-Threading Technology
Chipset Model: Intel C600
CACHE MEMORY:
Cache Memory Type: L3 Cache
Installed Size: 20MB
Cache Per Processor: 20MB
RAM:
Installed Size: 16GB
Max Supported Size: 384GB
Technology: DDR3 SDRAM
Memory Speed: 1600MHz
Compliance: PC3-12800
Form Factor: DIMM 240-Pin
Total Memory Slots: 24 DDR3 Slots
Configuration: 1 x 16GB
STORAGE:
Hard Drive: None
Max Internal Storage: 8 SFF SAS/SATA HDD bays (expandable to 16)
Optical Drive: DVD-Writer
STORAGE CONTROLLERS:
Controller Type: 1 x RAID – Integrated PCI Express 3.0 x8
Controller Interface: SATA 6Gb/s / SAS 6Gb/s
Storage Controller: Smart Array P420i with 1GB FBWC
RAID Levels: 0, 1, 5, 6, 10, 50, 60
Buffer Size: 1GB
NETWORKING:
Type: Plug-In Card
Interface Type: PCI Express x4
Ethernet Ports: 4 x Gigabit Ethernet
Controller: HP 331FLR
Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
POWER DESCRIPTION:
Device Type: Hot Plug Power Supply
Power Redundancy: Optional (1+1 scheme with additional supply)
Installed Qty: 1 (supports 2)
Voltage: AC 120/230V (50/60Hz)
Power Output: 460 Watts
80 Plus Certification: 80 Plus Platinum
