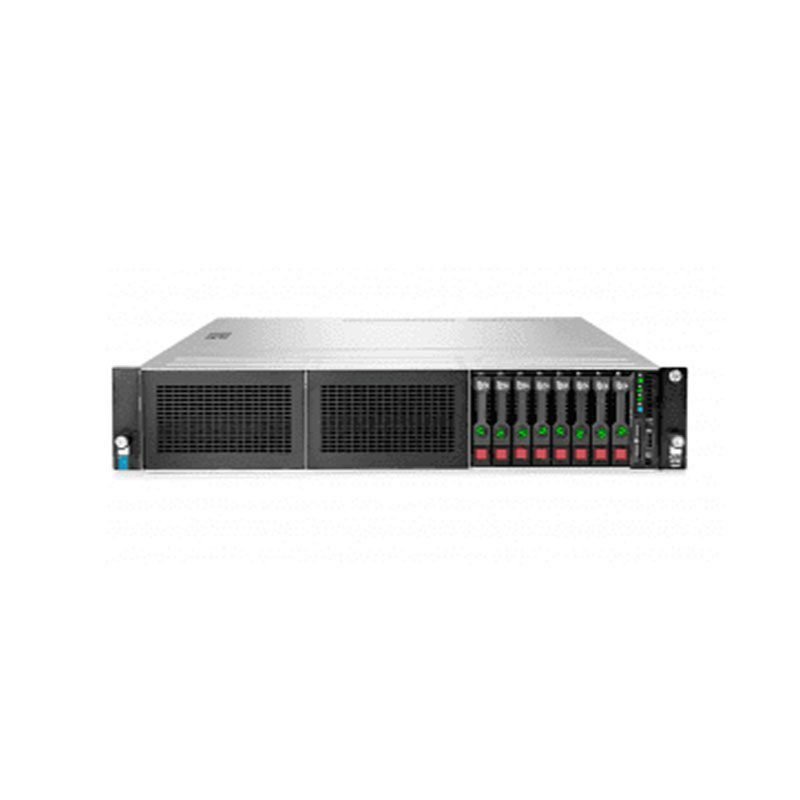

719064-B21 HP Proliant DL380 G9 CTO Chassis – No CPU

Description

719064-B21 Technical Specifications

HP Proliant DL380 G9 CTO Chassis – No CPU, No RAM, equipped with HP Dynamic Smart Array B140i, 8 SFF Hot Plug HDD Bays, and 4x Gigabit Ethernet in a 2U Rack Server.

GENERAL INFORMATION :
Manufacturer: Hewlett Packard
Manufacturer Part Number: 719064-B21
Product Name: Proliant DL380 2U Rack Mount
PROCESSOR & CHIPSET :
Installed Qty: None
Max Supported Qty: 2
Upgradability: Upgradable
MEMORY :
Installed Size: None
Maximum Size: 768GB
Technology: DDR4 SDRAM
Form Factor: DIMM 288-PIN
Memory Slots: 24 x DDR4 RAM Slots
Supported RAM: PC4-17000 – 384 GB – Registered, PC4-17000 – 768 GB – Load-Reduced
STORAGE & STORAGE CONTROLLER :
Hard Drive: None
Storage Controller Type: 1 X SATA – Integrated – PCI Express 2.0 X4
Controller Interface Type: Serial ATA-600
Storage Controller Name: HP Dynamic Smart Array B140i
Channel Qty: 10
RAID Level: RAID 0, RAID 1, RAID 10, RAID 5
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type: Integrated
Graphics Processor: Matrox G200
Video Interfaces: VGA
NETWORK & COMMUNICATION :
Networking Type: Integrated
Ethernet Ports: 4x Gigabit Ethernet
Ethernet Controller: HP 331i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION :
Device Type: Power Supply Hot Plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (With Optional Power Supply)
Installed Qty: 0
Max Supported Qty: 2
DIMENSIONS & WEIGHT :
Width: 17.5 In
Depth: 26.7 In
Height: 3.4 In
Weight: 32.5 Lbs
