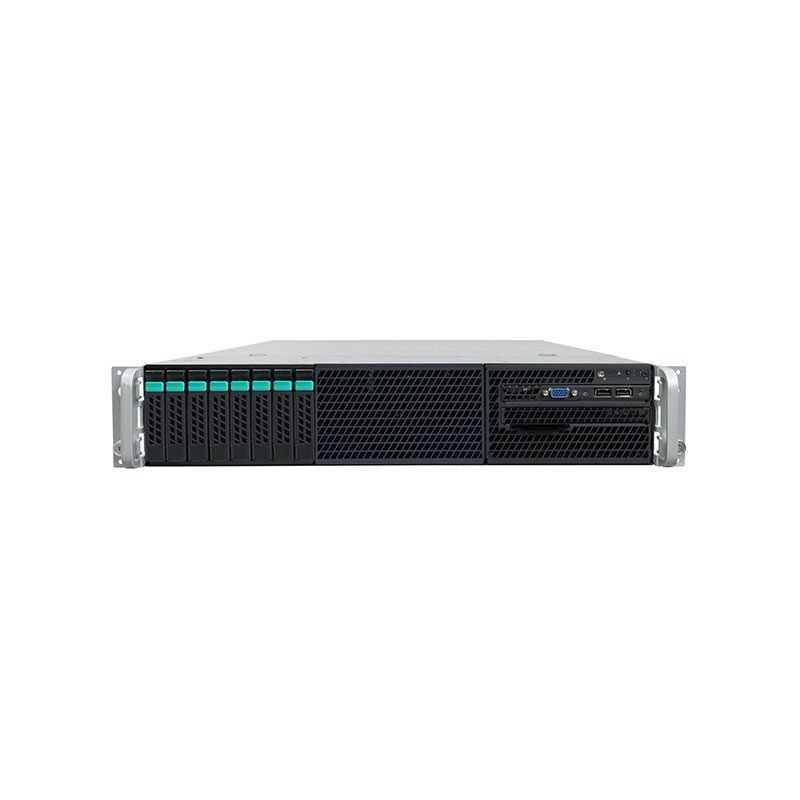

653745-001 HP Proliant DL585 G7 4x AMD 16-Core Server

Description

653745-001 Technical Specifications

HP Proliant DL585 G7 4x AMD 16-Core Opteron 6282 SE 2.6 GHz Processor

GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 653746-001
Product Name: Proliant DL585 G7 4U Rack Mount
PROCESSOR & CHIPSET:
Processor Type: AMD Opteron 6282 SE at 2.6 GHz
Multi-Core Technology: 16 Cores
64-Bit Computing: Yes
Installed Qty: 4
Max Supported Qty: 4
Upgradability: Upgradable
Chipset Type: AMD SR5690/SP5100
CACHE MEMORY:
Type: L3 Cache
Installed Size: 64 MB
Cache per Processor: 16 MB
MEMORY:
Installed RAM Size: 128 GB / 1 TB (Max)
Technology: DDR3 SDRAM – Advanced ECC
Memory Speed: 1333 MHz
Memory Specification Compliance: PC3-10600
Form Factor: DIMM 240-Pin
Features: Registered, Online Spare Memory
Configuration Features: 16 x 8 GB
STORAGE:
Hard Drive: None.
STORAGE CONTROLLERS:
Storage Controller Type: 1 x RAID – Integrated – PCI Express 2.0 x4
Controller Interface Type: Serial SATA-300 / SAS 2.0
Storage Controller Name: Smart Array P410i with 1GB FBWC
RAID Levels: RAID 0, RAID 1, RAID 10
Buffer Size: 1 GB
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: ATI ES1000
Video Memory: 32 MB
NETWORK & COMMUNICATION:
Networking: Network Adapter – PCI Express 2.0 x8 – Integrated
Ethernet Ports: 4 x Gigabit Ethernet
Ethernet Controller(s): HP NC375i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 3
Features: Wake On LAN (WOL), ACPI Support, PXE Support
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)
