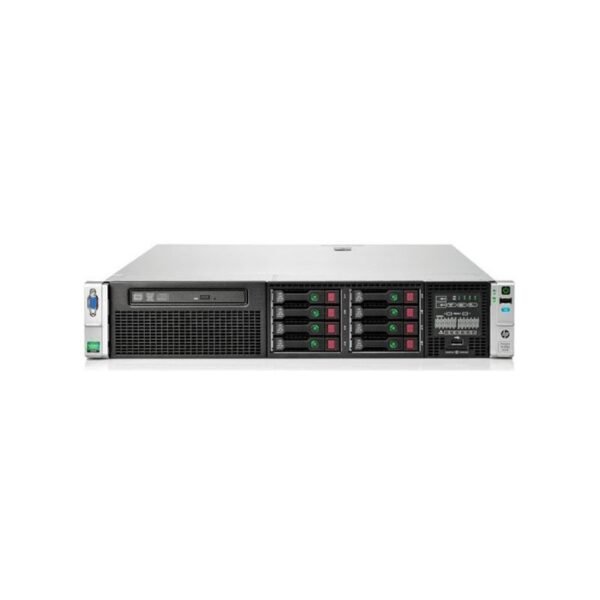

642107-001 HP Proliant DL380P G8 Rack Server with Xeon E5-2640

642107-001 Technical Specifications

HP Proliant DL380P G8 Rack Server with Xeon E5-2640

PRODUCT DETAILS:
GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 642107-001
Product Name: Proliant DL380p G8 – 2-Way 2U Rack Mount (Base Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2640 at 2.50 GHz
Multi-Core Technology: Hexa-Core (6 Core)
64 Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Model: Intel C600
CACHE MEMORY:
Type: L3 Cache
Installed Size: 15 MB
Cache Per Processor: 15 MB
MEMORY:
Installed Size: 16 GB (Max 768 GB)
Technology: DDR3 SDRAM
Memory Speed: 1333 MHz
Specifications Compliance: PC3-10600
Form Factor: DIMM 240-Pin
Features: Registered, Quad Channel Memory Architecture, Low-Voltage, HP Smartmemory
Configuration: 4 x 4 GB
STORAGE & STORAGE CONTROLLERS:
Hard Drive: None
Optical Drive Type: None
Type: Card Reader
Supported Flash Memory Cards: SD Memory Card
Storage Controller Type: 1 x RAID – Integrated – PCI Express 3.0 x8
Controller Interface Type: SATA-600 / SAS 2.0
Storage Controller Name: Smart Array P420I with 1GB FBWC
Raid Levels Supported: 0, 1, 5, 10, 50
Buffer Size: 1 GB
DISPLAY & GRAPHICS:
Graphics Type: Integrated
Graphics Controller Model: Matrox G200
Video Interfaces: VGA
NETWORK & COMMUNICATION:
Interface Type: PCI Express x4
Ethernet Ports: 4 x Gigabit Ethernet
Ethernet Controller: HP 331FLR
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 4
Features: Wake On LAN (WOL), PXE Support
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1P, IEEE 802.3AD.
