Description
458243-001-RF Technical Specifications

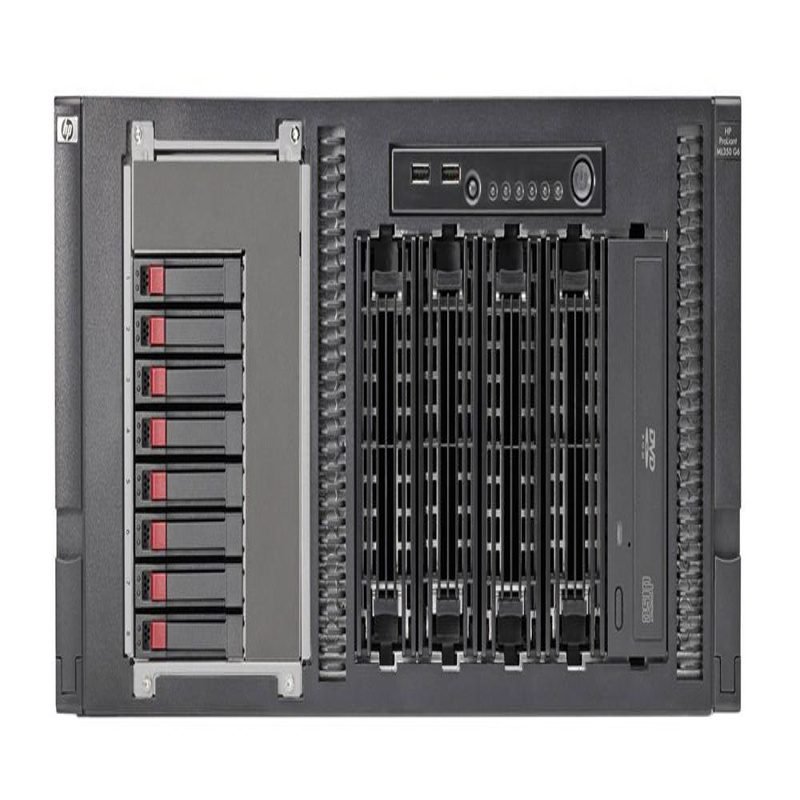

HP Proliant ML350 G5 with Intel Xeon E5420 Quad-Core 2.5GHz
GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 458243-001
Product Name: Proliant ML350 G5 – 5U Rack Mount Server (Base Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon Quad-Core E5420 / 2.50GHz
Multi-Core Technology: Quad-Core
64-Bit Computing: Yes
Installed Processor Quantity: 1
Maximum Supported Quantity: 2
Upgradability: Yes
Chipset Type: Intel 5000z
Data Bus Speed: 1333 MHz
CACHE MEMORY:
Type: L2 Cache
Installed Size: 12 MB
Cache Per Processor: 6 MB
MEMORY:
Installed RAM Size: 1 GB
Maximum Memory: 32 GB (8 x 4 GB)
Technology: DDR2 SDRAM – Advanced ECC
Memory Speed: 667 MHz
Memory Specification Compliance: PC2-5300
Form Factor: FB-DIMM 240-Pin
Features: Fully Buffered, Online Spare Memory
Memory Slots: 240-Pin DIMM (8 DDR2 Slots)
STORAGE:
Hard Drive: None
Hard Drive Interface: Hot Plug SATA/SAS
Drive Bays: 8 SFF (2.5 inch) SAS or SATA Hot Plug
Optical Storage Type: DVD-ROM – IDE
Read Speed: 16x
STORAGE CONTROLLERS:
Storage Controller Type: 1 x RAID – Plug-In Card – PCI Express x4
Controller Interface Type: SATA-150 / SAS
Storage Controller Name: Smart Array E200i / 128 BBWC Controller
RAID Level: 0, 1, 5, 10
Buffer Size: 128 MB
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: ATI ES1000
Video Memory: 16 MB SDRAM
NETWORKING:
Networking: Network Adapter – PCI Express x4 – Integrated
Ethernet Controller(s): HP NC373i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2 Standard
Features: Wake On LAN (WOL)
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
EXPANSION & CONNECTIVITY:
Expansion Bays Total (Free): 4 (3) x Front Accessible – 5.25 x 1/2H
8 (8) x Hot-Swap – 2.5 SFF
Expansion Slots Total (Free): 3 (3) x PCI Express x8 (x4 Mode)
2 (2) x PCI-X / 100 MHz
1 (1) x PCI-X / 133 MHz
8 (6) x Memory – FB-DIMM 240-Pin
2 (1) x Processor
