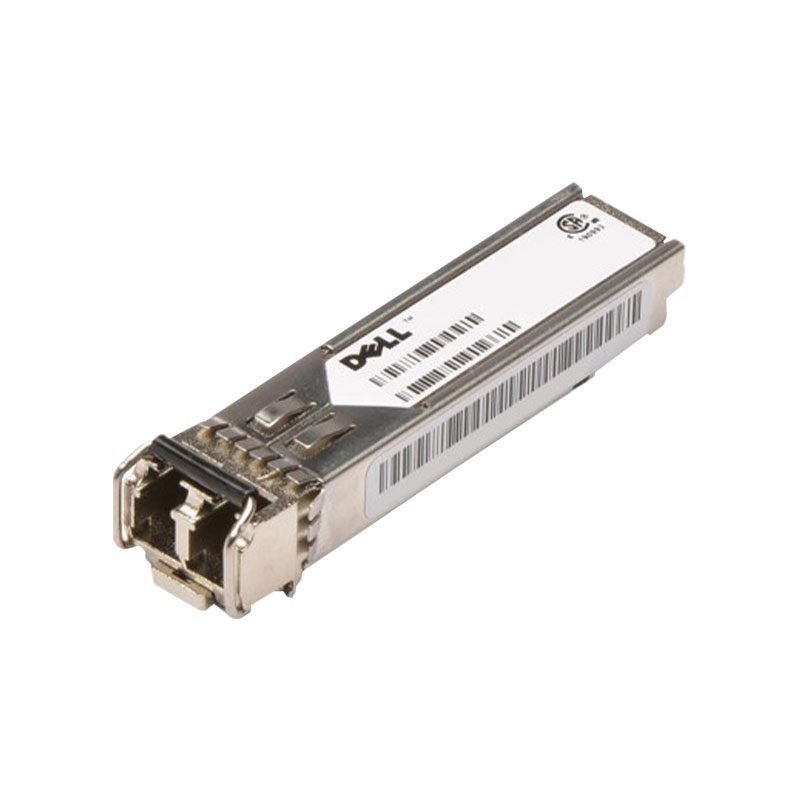

407-10941 Dell 10Gbps 10GBase-LR SFP+ Transceiver Module

Dell-407-10941
Dell-407-10941

  • Fast Shipping

    Receive products in amazing time

  • Easy Returns

    Return policy that lets you shop at ease

  • Always Authentic

    We only sell 100% authentic products

  • Secure Shopping

    Your data is always protected

Highlights

407-10941 Overview

Discover the Dell 10Gbps 10GBase-LR SFP+ Transceiver Module, designed for high-performance data transmission over single-mode fiber with a wavelength of 1310nm. This module ensures reliable connectivity for your networking needs.

SKU: 407-10941 Category: Tags: , , , , Brand:

Description

407-10941 Technical Specifications

Dell 10Gbps 10GBase-LR SFP+ Transceiver Module

Form Factor: SFP+
Interface: Single mode
Connector: LC Duplex
Wavelength (TX): 1310 nm
Wavelength (RX): 1310 nm
TX Wavelength Range: 1270nm – 1355nm
RX Wavelength Range: 1260nm – 1565nm
Bandwidth: 11.3 Gbit/s, 600 Mbit/s
Laser Type: DFB
Receiver Type: PIN
Receive Sensitivity: -14.4 dBm
Distance: Up to 10 km
Power Budget: 6.2 dB
Transmit Power: 0.5 dBm (max), -8.2 dBm (min)
Operating Temperature: 0°C – 70°C
Digital Diagnostic Management (DDM): Internally calibrated
Maximum Receive Power: 0.5 dBm
Type: LR
Extinction Ratio: 3.5 dB
Dimensions: Width: 13.4 mm, Depth: 56.5 mm, Height: 8.5 mm

Additional information

Weight1.5 lbs
Dimensions7.59 × 4.27 × 2.27 in
