019-078-056 Technical Specifications

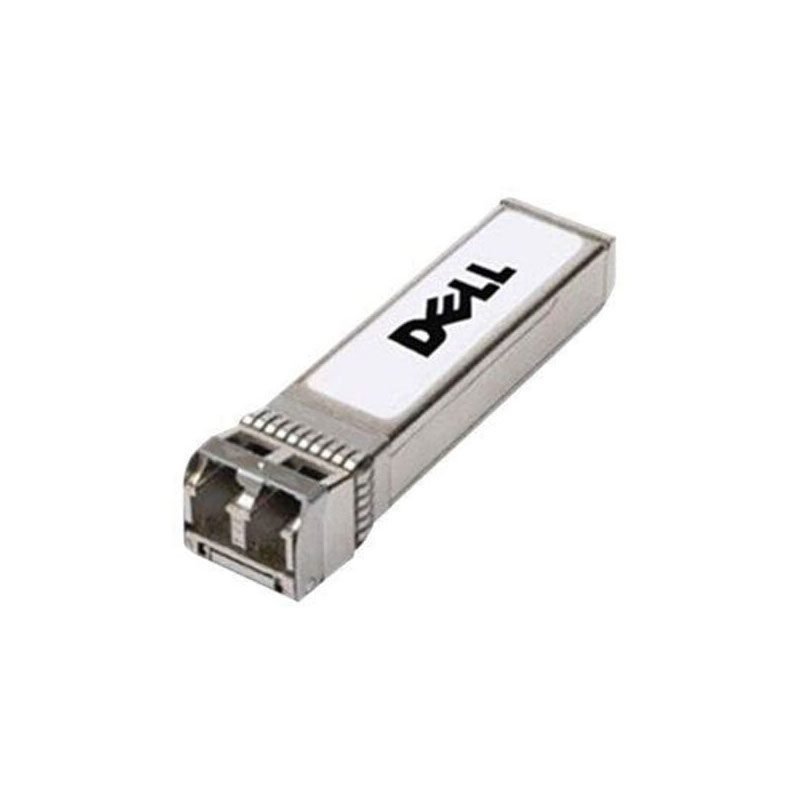

Dell 25GBPS Short Wavelength Transceiver
Manufacturer: Dell
Type: SFP+ Transceiver Module
Product Category: Networking
This 25GBPS transceiver module supports a data transfer rate of 25 GBPS and operates using Multi-Mode Fiber (MMF). It achieves a maximum distance of 100 meters with an 850 NM wavelength and features a Duplex LC Connector. Key advantages include:
- Up to 25 Gb/s bi-directional data links
- Hot-pluggable SFP+ footprint
- Integrated digital diagnostic functions
- 850nm oxide VCSEL laser transmitter
- RoHS compliant
- 100m over M5F MMF (50/125 um OM4)
- 70m over M5E MMF (50/125um OM3)
- 20m on MMF (50/125um OM2)
- Metal enclosure for reduced EMI
- 1.2W maximum power consumption
- Single 3.3V power supply
- Operating temperature range: 0°C to 85°C
